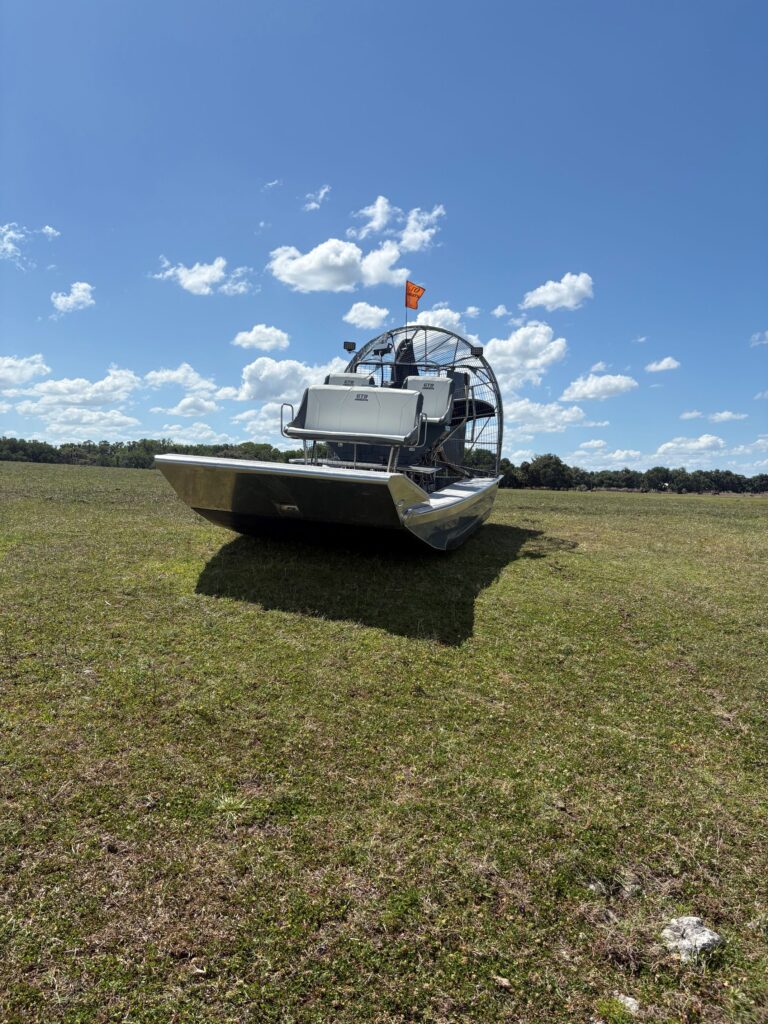

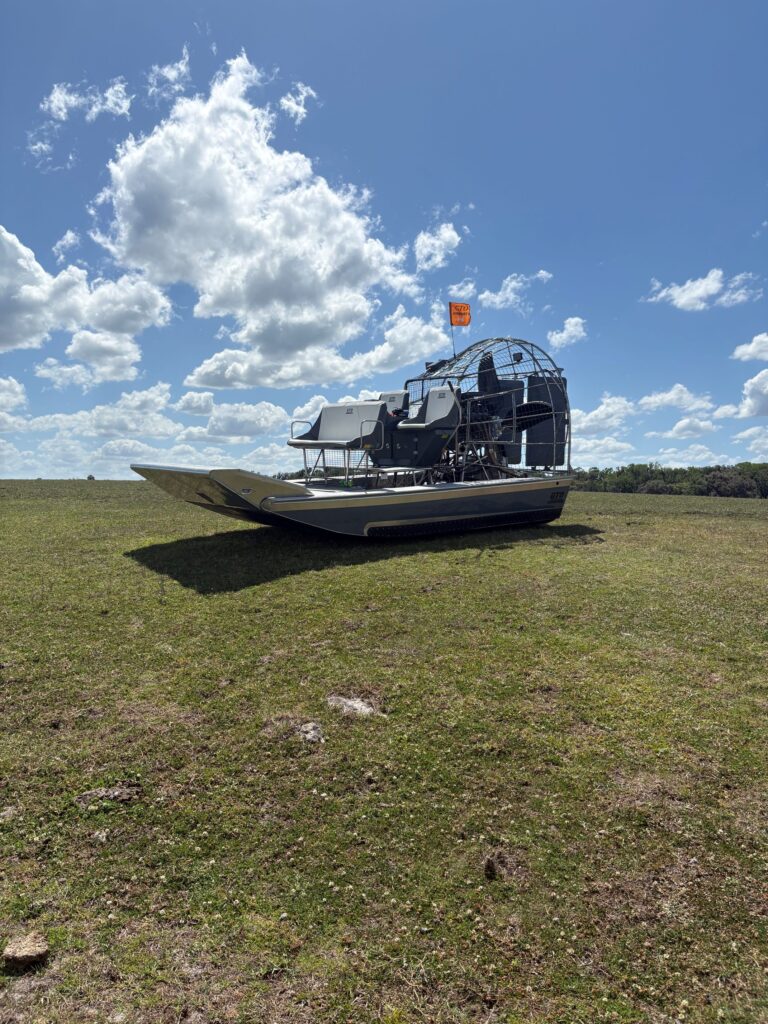

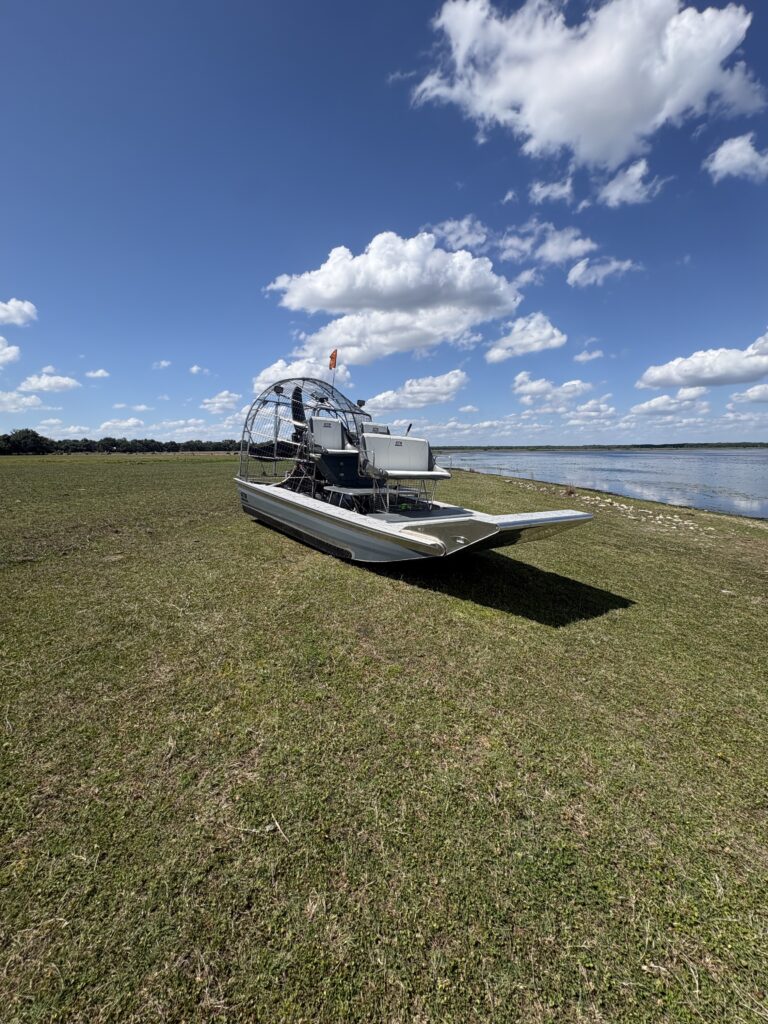

HULL
-All Welded Aluminum Construction
-Non-Trip Chine of Latest Design
-Length 16 Feet
-Beam 8 Feet
-Side Height of 26 Inches
-Transom Min.23 Inches
-Transom Relieved 15 Degrees for Rear Wash Safety
-Bottom One Piece .190 5086 Marine Grade Aluminum
-Transom .190 5086 Marine Grade Aluminum, Relieved 15 Degrees for Rear Wash Safety
-Bulkhead & Bow Cap & Sides .125 5052 Marine Grade Aluminum
-7 – 2” X 2” X .250 Aluminum T-Bar Stringers
-I-Beam Cross Brace
-2 – .190 5086 Aluminum Gussets mounted T-Bar to Transom
-2 – .125 5052 Aluminum Gussets mounted Transom to Splash Plate
-Front Deck Area 36” Width with Lockable Storage
-Top of Deck non-skidded for Safety-Choice of Standard Colors
-2 – 1” Drain Plugs
-3 – Heavy Duty Stainless Bow Eye
-Side Walk Boards
-USCG Basic Flotation
POLYMER
-3/8” UHMW Polymer Hull Bottom
-Attached with Stainless Steel Flush Mount Bolts
GRASS RAKE
-24” Solid Aluminum
-Step
-Flat Top

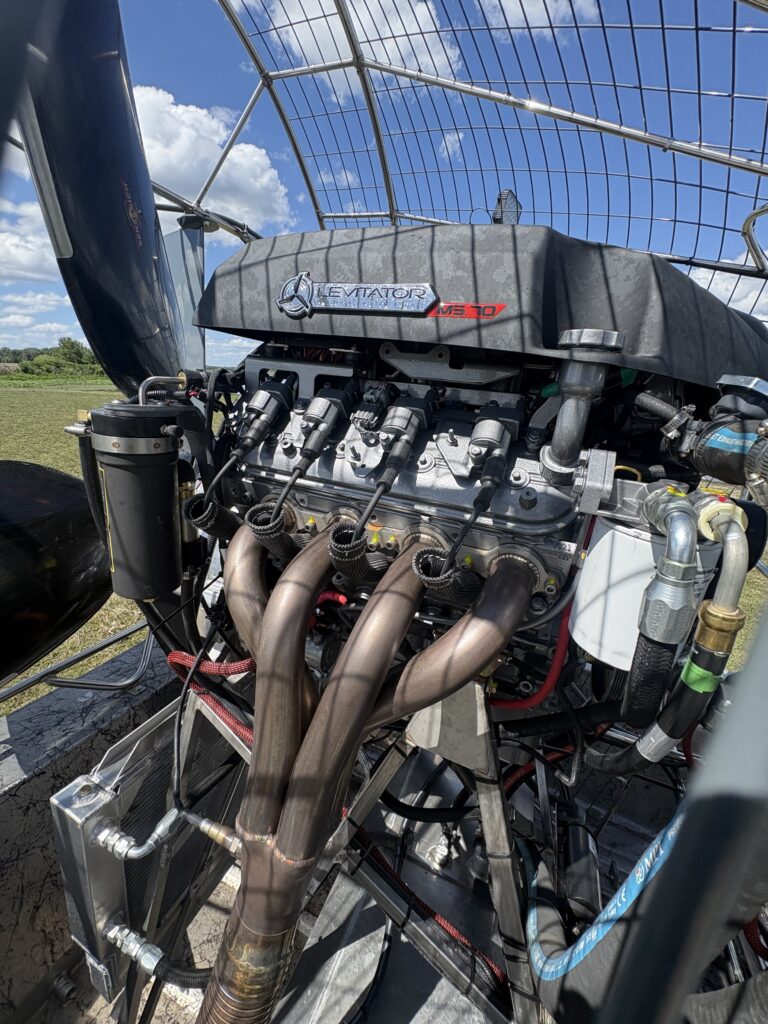

ENGINE
-Pleasure Craft Marine Levitator
-MS 70 7.4 Liter LSX
-525 HP, 550 Torque
-Patented Premium Fuel Control Cell
-12-Volt 250 Amp Alternator
-Serpentine Belt Pulley System
-Electric Fuel Pump with Fuel Filter/Water Separator
-U.S.C.G. Approved Fuel Lines
-Electric Gear Reduction Starter
-Precision Machined Flywheel
-Energy Suspension Interlocking Motor Mounts
-Engine Cowling Cover
-Weight 565lbs
REDUCTION
-Century Drive
-Excalibur
-2:38 to 1 Ratio
-Soft Drive
PROPELLER
-Sensenich Composite Propeller
-Adjustable Pitch
-4 – Blade 82” JR Series to Match Engine Horse Power

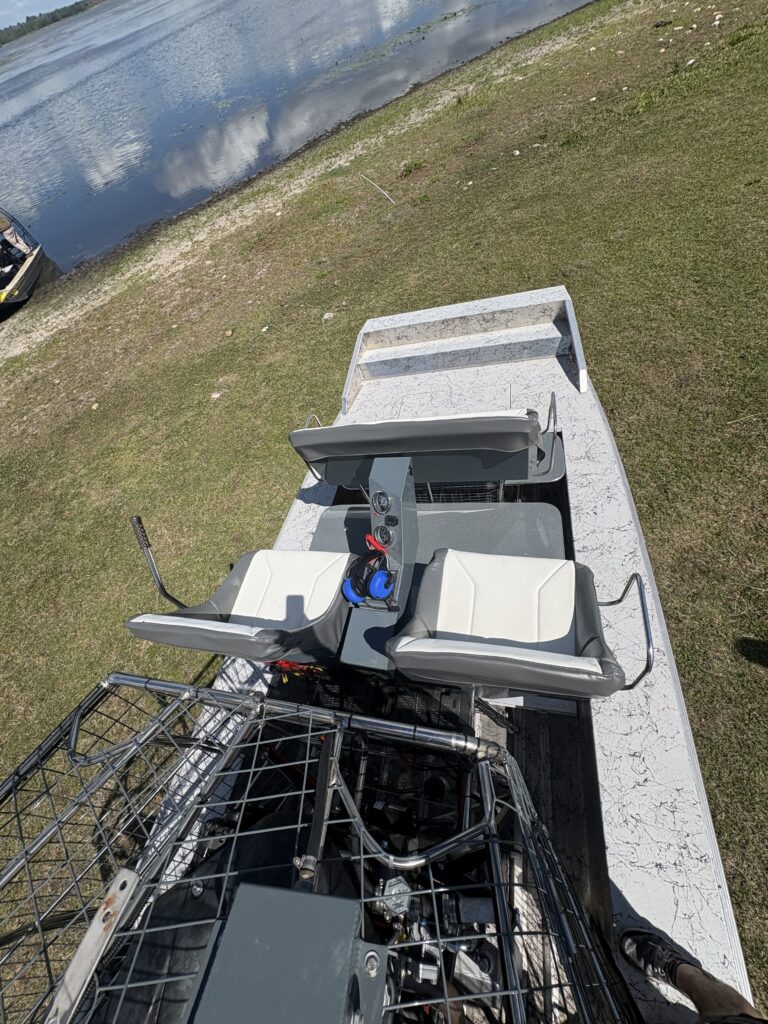

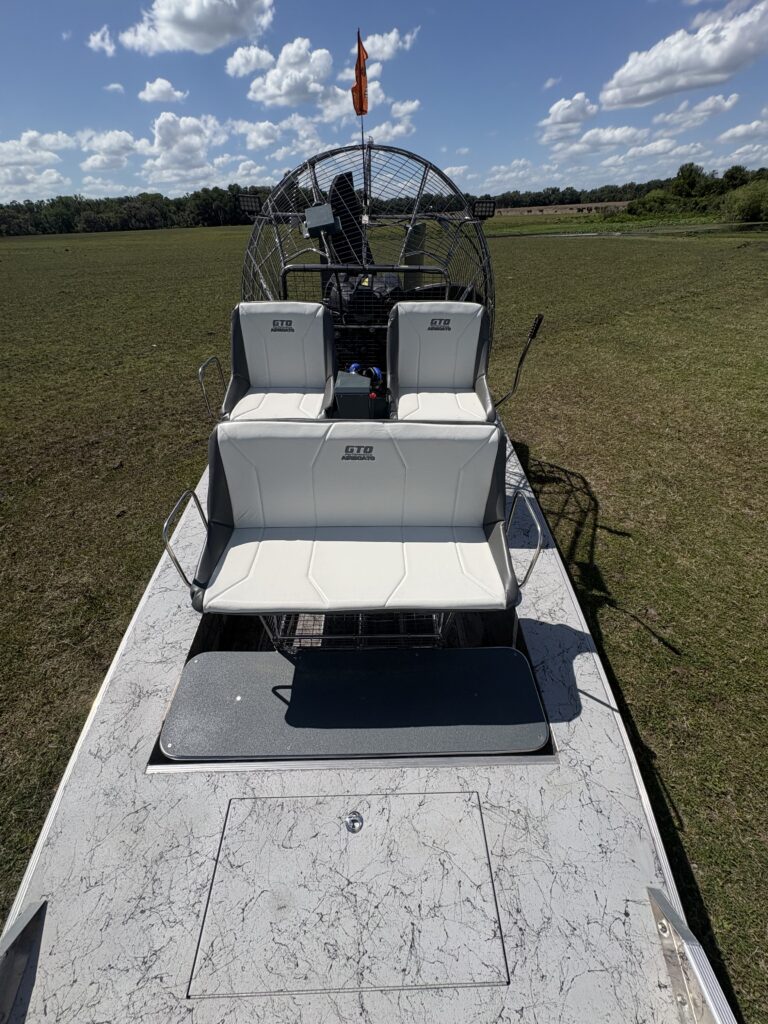

SEATING
-Seating for 5, 2-Single Fatman Rear Operator, Triple Front
-Dry Box under Front & Wire Basket under Front Seats
-Custom Marine Vinyl Seat Cushions & Rain Covers
RIGGING
-Engine Stand .065 wall 1” & 1 ¼” 304 Stainless Steel Square Tubing
-Seat Package .065 wall 1” & 5/8” 304 Stainless Steel Round Tubing
-Cage Propeller Guard.065 wall 5/8” & 1” 304 Stainless Steel Round Tubing
-Cage Propeller Guard to provide 3” Min. Clearance for Propeller
-.135” X 2” X 4” Stainless Steel Cage Wire (Banded)
-2 – Cage Doors for Engine Maintenance
EQUIPMENT
-Stainless Steel Flex Pipe 3”
-Stainless Steel Headers
-Stainless Steel Mufflers
-AFCO Heavy Duty Engine Cooling Aluminum Radiator
-Heavy Duty Oil Cooler
-Aluminum Coolant Expansion Tank
-U.S.C.G. Approved Radiator/Coolant Hoses
-Complete Automatic Bilge System
-Dual Batteries with Battery Boxes (650 Cranking Amps)
-Ignition Protected 4 Position Battery Selector Switch
-Certified 40 Gallon Aluminum Fuel Tank with Remote Fill
-Cable Steering attached to top of Rudders
-2’ X 4’ Foot Air Foil Aluminum Rudders, Foam Filled, Nylon Bushings
-Stainless Steel Rudder Rods
-Rudders attached with Stainless Steel Heim Joints
-All Stainless Steel Fasteners
-L.E.D. Lights Attached to Cage
-Floor Board Courtesy Light
-U.S.C.G. Approved Navigational Lights
INSTRUMENTATION
-Aluminum Bootleg Style Panel
-Marine Vinyl Cover
-Marine Standard Wiring
-Lighted Marine Gauges
-Voltmeter
-Temperature Gauge
-Oil Pressure Gauge
-Tachometer
-Hour Meter
-Fuel Gauge
-8-Labeled & Lighted Marine Toggle Switches with Rubber Boots
-Keyed Ignition
-Kill switch with Lanyard
-Engine Warning System
-1 – 12 Volt Marine Power Point
-1 – USB Power Point
-Fuse Panel with Circuit Breakers
-Glove Box
PAINT/POWDERCOAT/WEBBING/NON-SKID
-Hull Webbing
-Rudders Painted
-Seat Shells Painted
-Instrument Panel& Seat Box Powder Coated
-All Walk Areas Non-Skid
-*Rigging (Polished Stainless Steel)

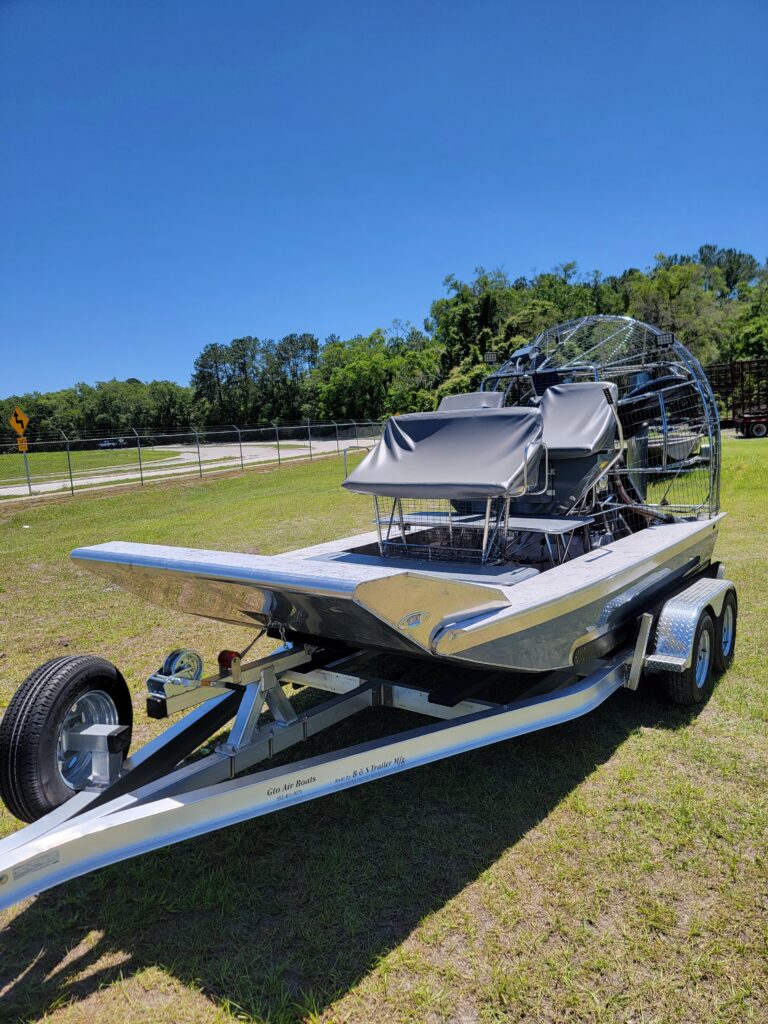

TRAILER
-Aluminum I-Beam Construction
-Tandem Torsion Axle (3500 lbs. Axle)
-2” Heavy Duty Coupler
-2 – Safety Chains
-Heavy Duty Tongue Jack with Wheel
-Heavy Duty Wench, Nylon Strap & Safety Chain
-Marine Easy Grease Bearings
-Marine Carpet Covered Running & Side Boards
-D.O.T. LED Lights
-Easy Loading Rear Roller & Board
MANUALS
-2 – Owner/Operational/Maintenance Manuals
TRAINING
-Training for Operation, Maintenance and Safety
LIMITED-WARRANTY
-Hull: Manufacture provides a Lifetime Recreational Warranty against defects in Workmanship and Materials to the Original Owner, 2 Year Commercial Use. Polymer, Non-Skid and Painted Surfaces are not included in this Warranty *
-Engine: Manufacture Warrants its new products to be free from defects in material and workmanship under normal use and service conditions for 3 Year/200 Hour warranty *
-Reduction Unit: Manufacture Warrants its Product to be free from defects in Materials and Workmanship under normal use and service by Original Owner for a Period of 2 Years or 200 operating hours from date of Purchase *
-Propeller: Manufacture Warrants its products against defects in Material, Workmanship, and Manufacturing for 3 Year/300 Hours *
-Trailer: Manufacturer Warrantees Trailer for a Period of 3 Years *
-All other Equipment & Accessories Minimum of 1 Year Coverage by repair or replacement *
*See a GTO Airboat Representative for Details and limitations of Warranties
