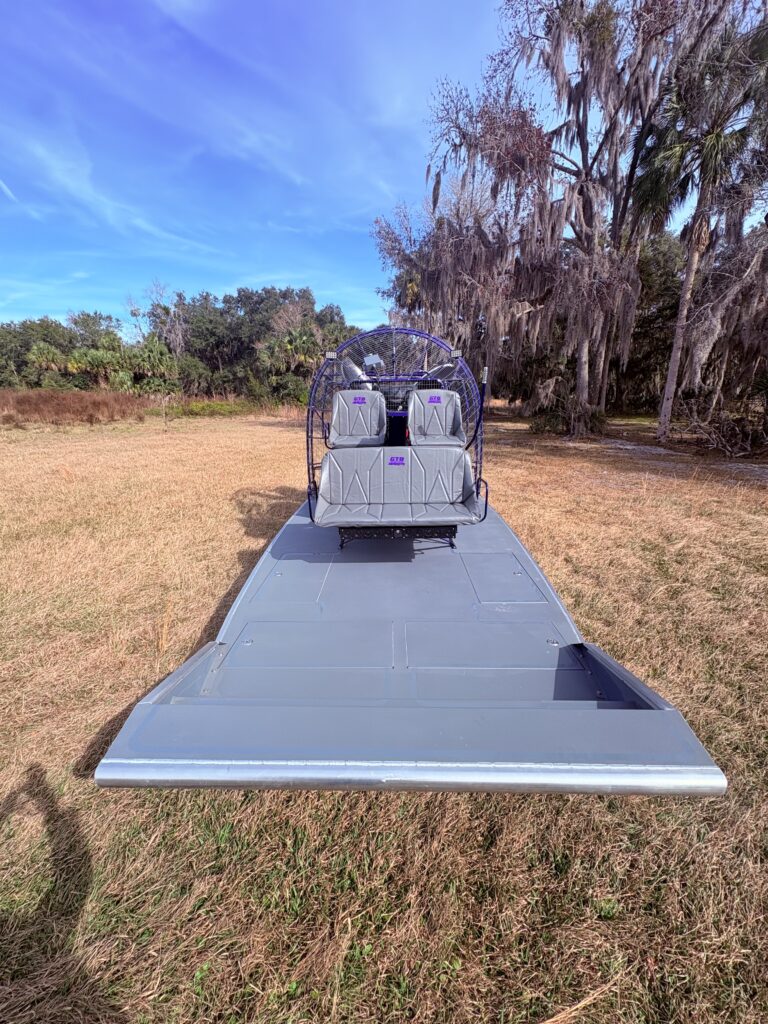

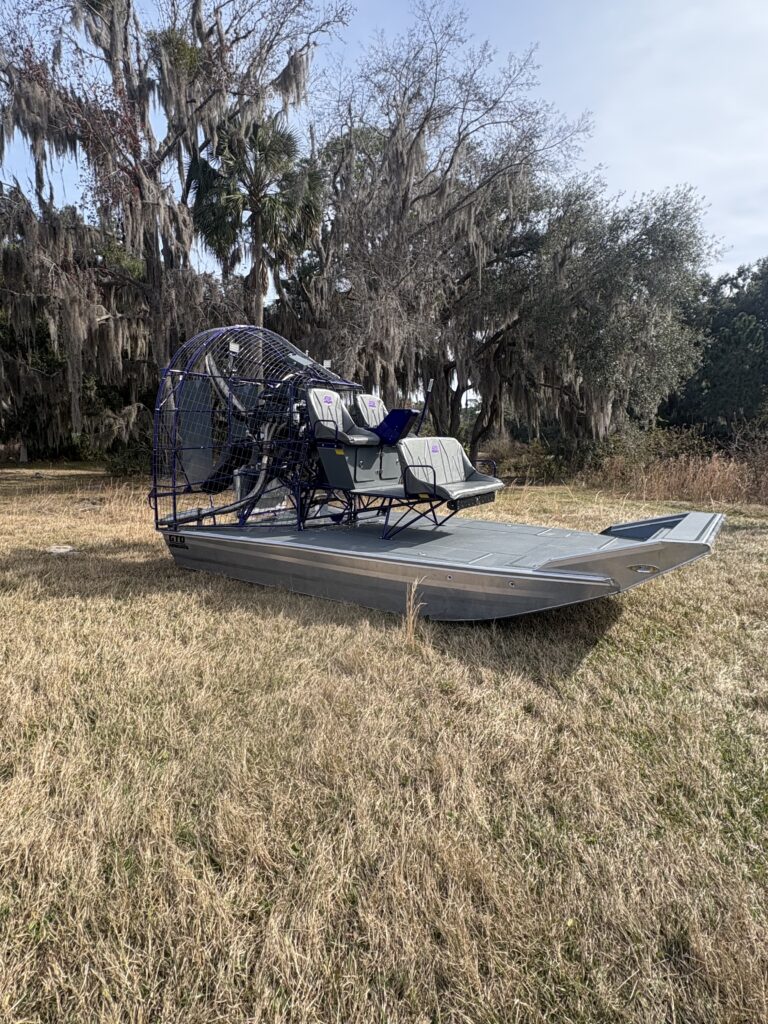

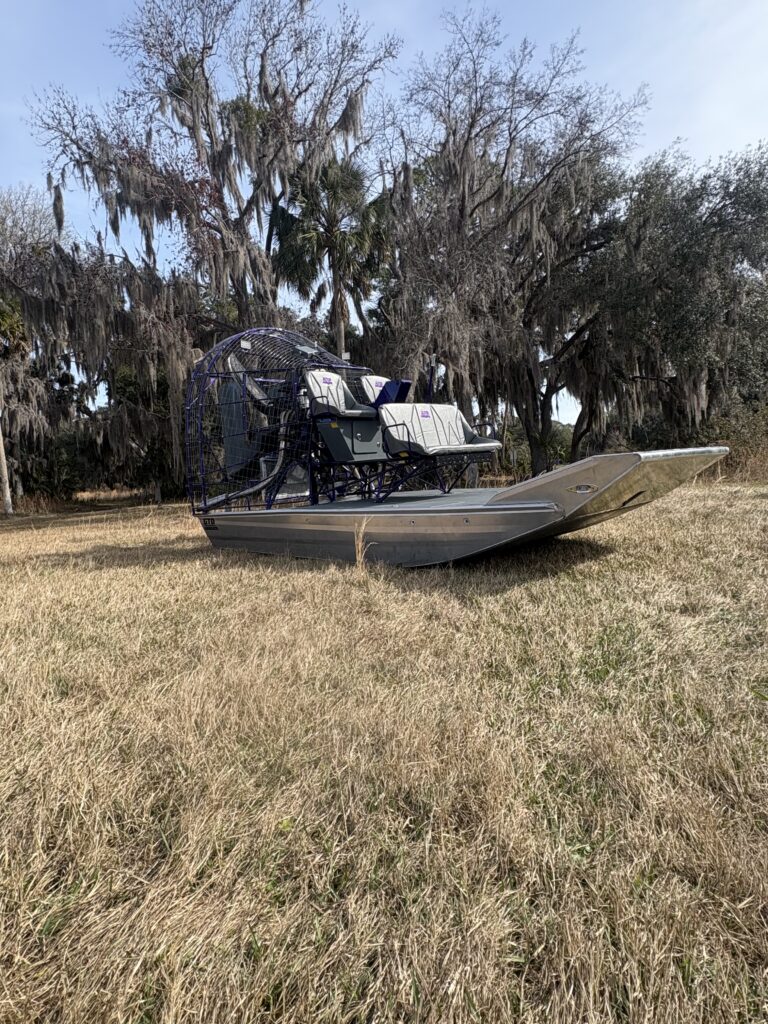

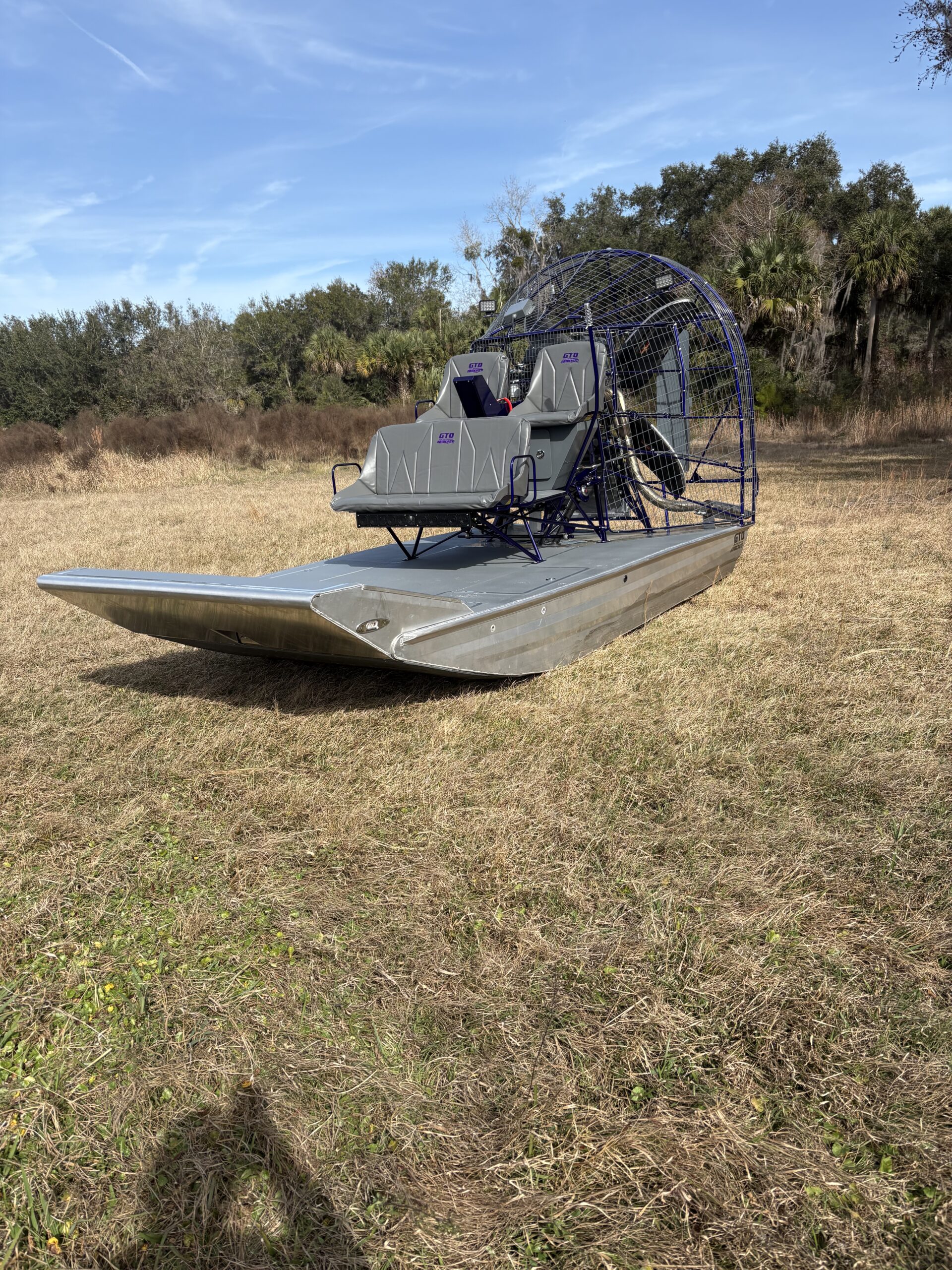

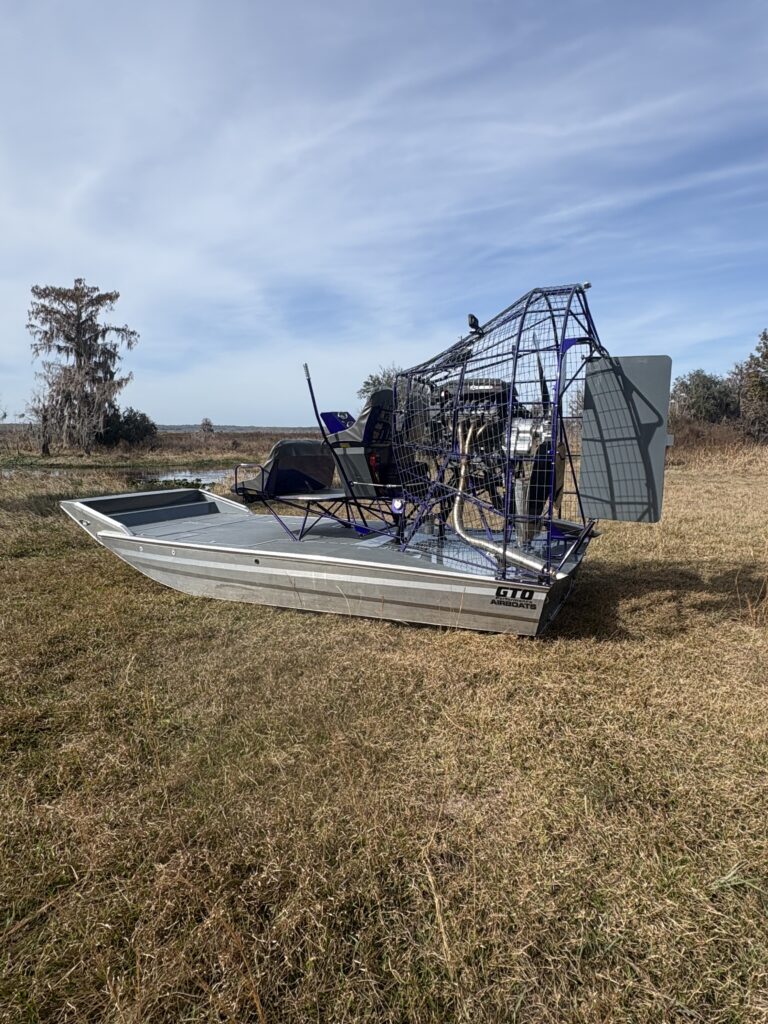

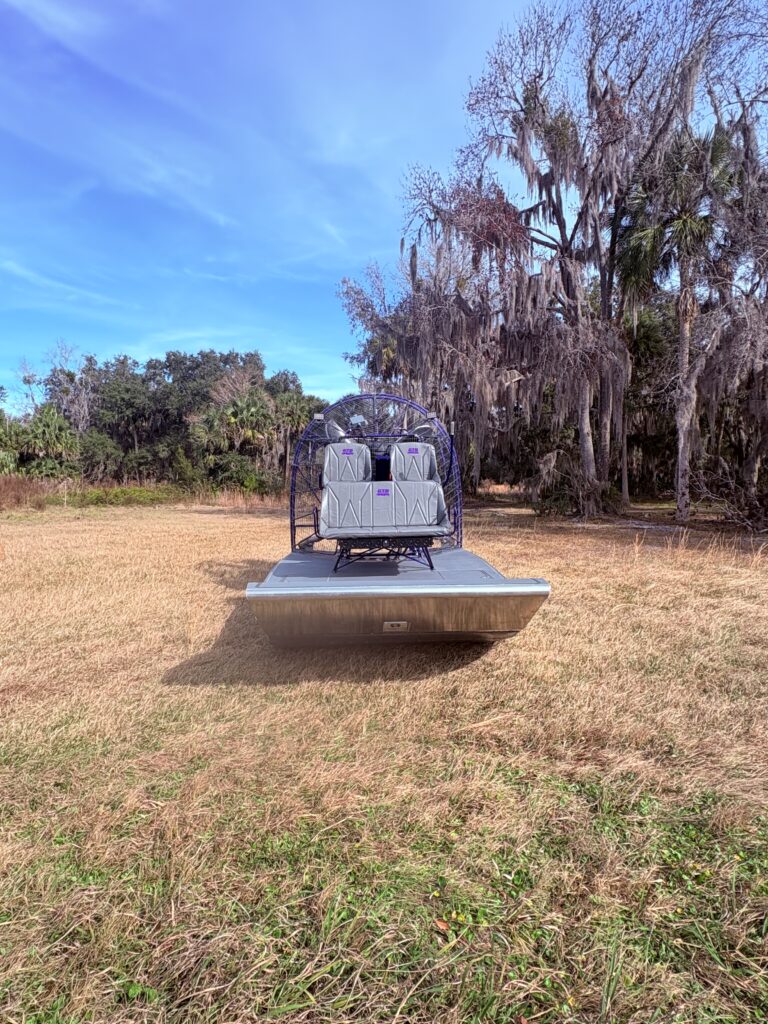

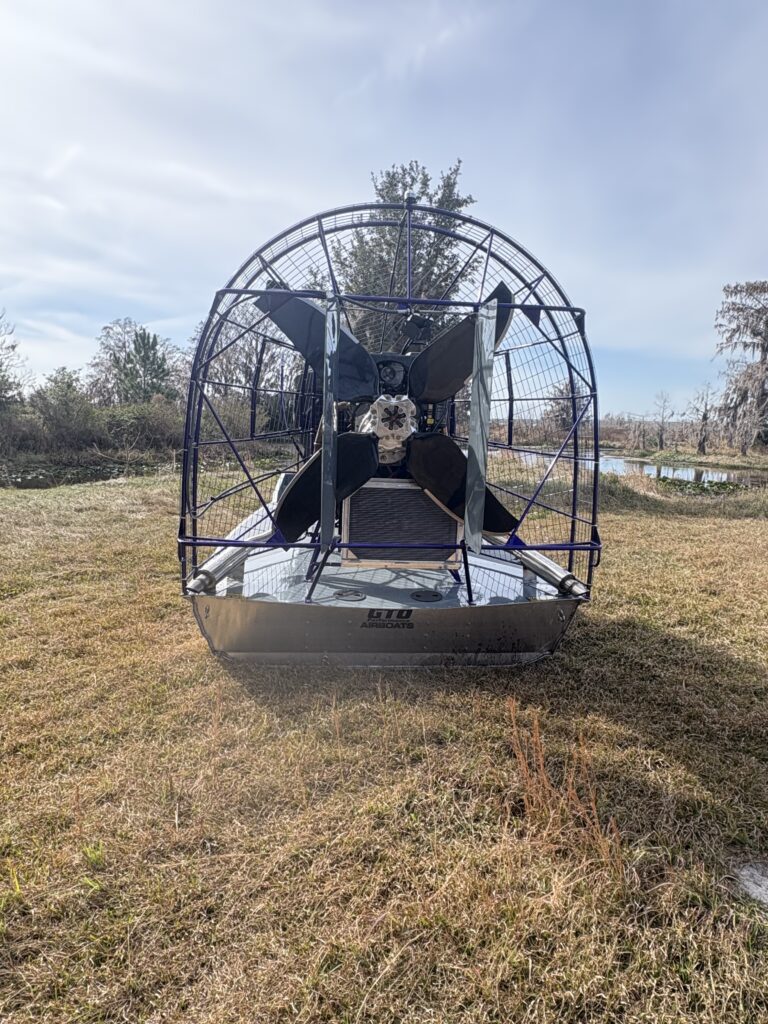

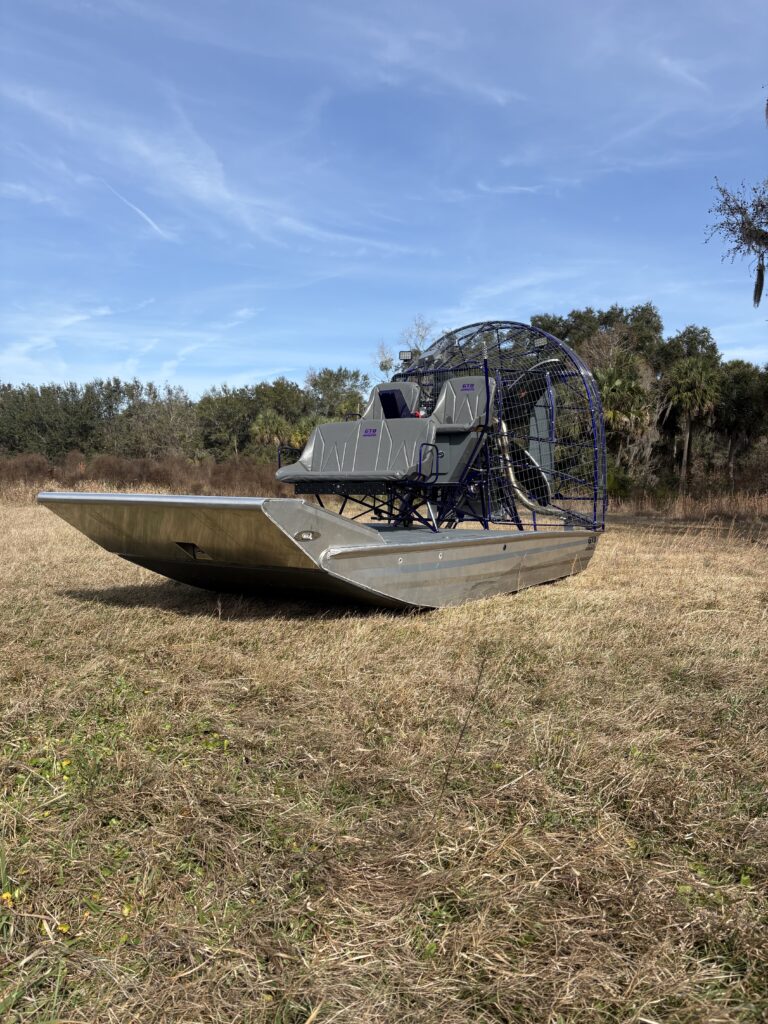

The SPV “Patrol Master”, GTO’s sleek-lined, low-profile, full-decked Airboat is a solid foundation for Recreational Fun, Search and Rescue, and Patrol Work.
Specifications:
HULL
-Complete Deck Over
-One Piece Bottom Construction
-Non-Trip of Latest Design
-Length 15’
-Beam 8’
-Height of Midship 24 Inches
-Transom Min. 19 Inches
-Transom Relieved 15 Degrees for Rear Wash Safety
-All Welded Aluminum Construction Bottom and Transom Marine Alloy 5086 .190
-Bulkhead & Sides Marine Aluminum Alloy 5052 .125
-Bottom Stiffeners equally spaced across bottom
-7 – 2” X 2” X ¼” T-Bar Stringers
-2 – Cross Braces
-Twin Door Storage under Bow with Flush Mount Lockable Access with Drip Rail
-2 – Access Doors, Port and Starboard
-3 – Heavy Duty Stainless Bow & Transom Tiedown Eyes
-4 – Stainless Steel Flush Mount Retractable Cleats
-USGG Basic Flotation
POLYMER
-3/8” Polymer Bottom
-Attached with Stainless Steel Fasteners
GRASS RAKE
-24” Solid Aluminum
-Step
-Flat Top
ENGINE
-Pleasure Craft Marine Levitator
-MS 70 7.4 Liter LSX
-525 HP, 550 Torque
-Weight 565lbs
-Patented Premium Fuel Control Cell
-12-Volt 250 Amp Alternator
-Serpentine Belt Pulley System
-Electric Fuel Pump with Fuel Filter/Water Separator
-U.S.C.G. Approved Fuel Lines
-Electric Gear Reduction Starter
-Precision Machined Flywheel
-Energy Suspension Interlocking Motor Mounts
REDUCTION
-Stinger Gear Drive
-Ratio 2.38 to 1
-Soft Drive
PROPELLER
-Sensenich 4 – Blade 82” JR Composite Propeller
-Adjustable Pitch
-Matched to the Horsepower of Engine

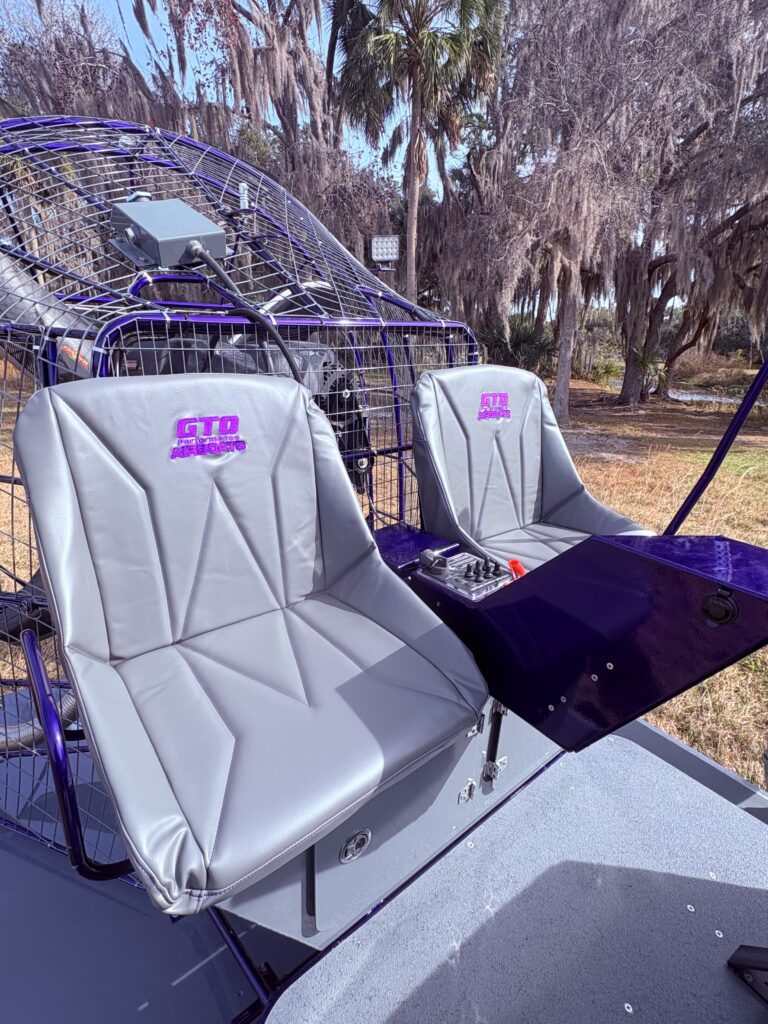

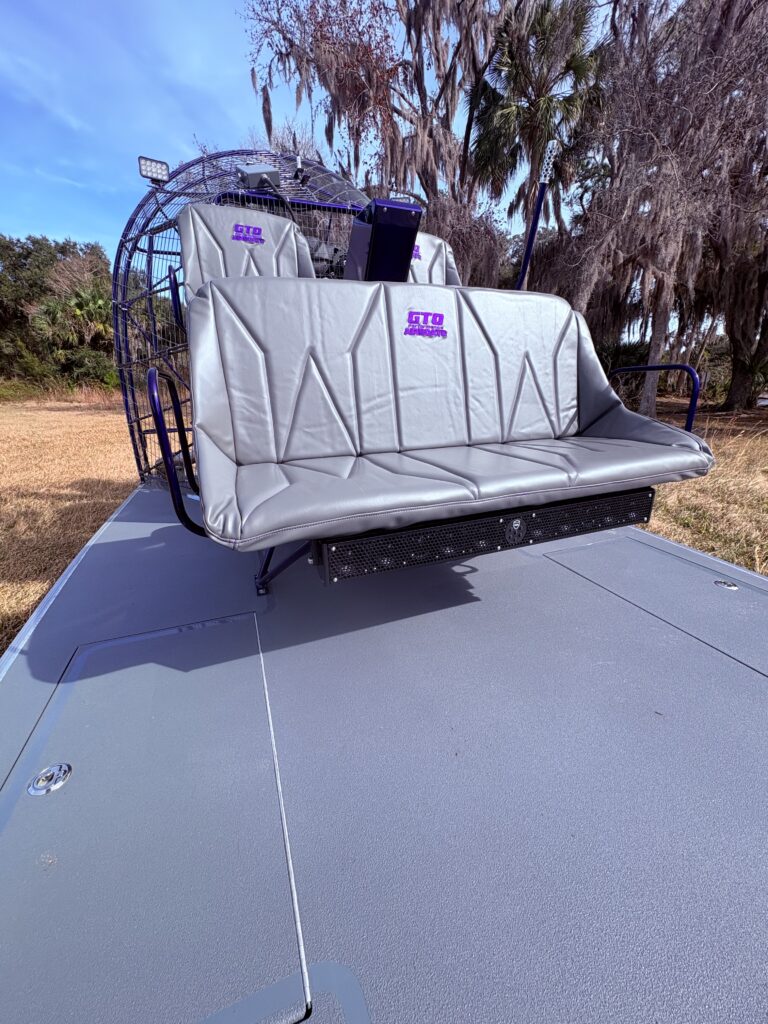

SEATING
-Hydrofoil Aluminum Seating for 5, Double Rear Operator, Triple Front Passenger
-Wide Double Seat Box under Rear Operator Seat
-Custom Marine Vinyl Seat Cushions and Rain Covers
RIGGING
-.065 wall 304 Stainless Steel Tubing Super Structure with 1 ¼” Engine Stand Supports
-.065 wall 1” 304 Stainless Steel Tubing Seat Package
-Round .065 wall 5/8” & 1” 304 Stainless Steel Tubing Cage
-Propeller Guard to provide 3” Min. Clearance for Propeller
-.135” X 2” X 4” Stainless Steel Cage Wire (Banded)
-Access Doors on Side of Cage
-Two Mounts for Flag Mount/Antennas
EQUIPMENT
-Stainless Steel Headers
-Stainless Steel Flex Pipe & Band Clamps
-Stainless Steel Mufflers
-Heavy Duty Engine Cooling Aluminum Radiator
-Aluminum Coolant Expansion Tanks
-U.S.C.G. Approved Radiator Hoses
-Heavy Duty Oil Cooler
-High Pressure Braided Oil Cooler Lines
-Complete Automatic Bilge System
-Dual Batteries with Boxes (650 Cranking Amps)
-Ignition Protected Battery Selector Switch
-Certified Low Profile 47 Gallon Aluminum Fuel Tank with Remote Fill
-Cable Steering attached to top of Rudders
-4 Foot Air Foiled Aluminum Rudders, Foam Filled, Nylon Bushings
-Stainless Steel Rudder Rods
-Rudders attached with Stainless-Steel Heim Joints
-All Stainless-Steel Fasteners
INSTRUMENTION & ILLUMINATION
-Bootleg Aluminum Instrument Panel
-Marine Standard Wiring
-Lighted Marine Gauges
-Labeled Marine Toggle Switches
-Voltmeter
-Temperature Gauge
-Oil Pressure Gauge
-Fuel Gauge
-Tachometer
-Hour Meter
-Engine Warning System
-Marine Keyed Ignition
-1 – 12 Volt Marine Power Point
-1 – USB Port
-2 – Handles
-Fuse Panel with Circuit Breakers
-U.S.C.G. Approved Navigational Lights
-Flood Lights Mounted Port and Starboard Inside of Cage
-L.E.D. Courtesy Light Package, includes Floorboard & Decking, Set Box
PAINT/ MARINE POWDER COAT/ WEBBING/ NON-SKID
-Hull Deck Non-Skid
-Rudders Painted
-Seat Shells Powder Coated
-Instrument Panel Powder Coated
-Seat Box Powder Coated
-Powder Coated Rigging with Powder Coated Banded Wire (Black & Grey)

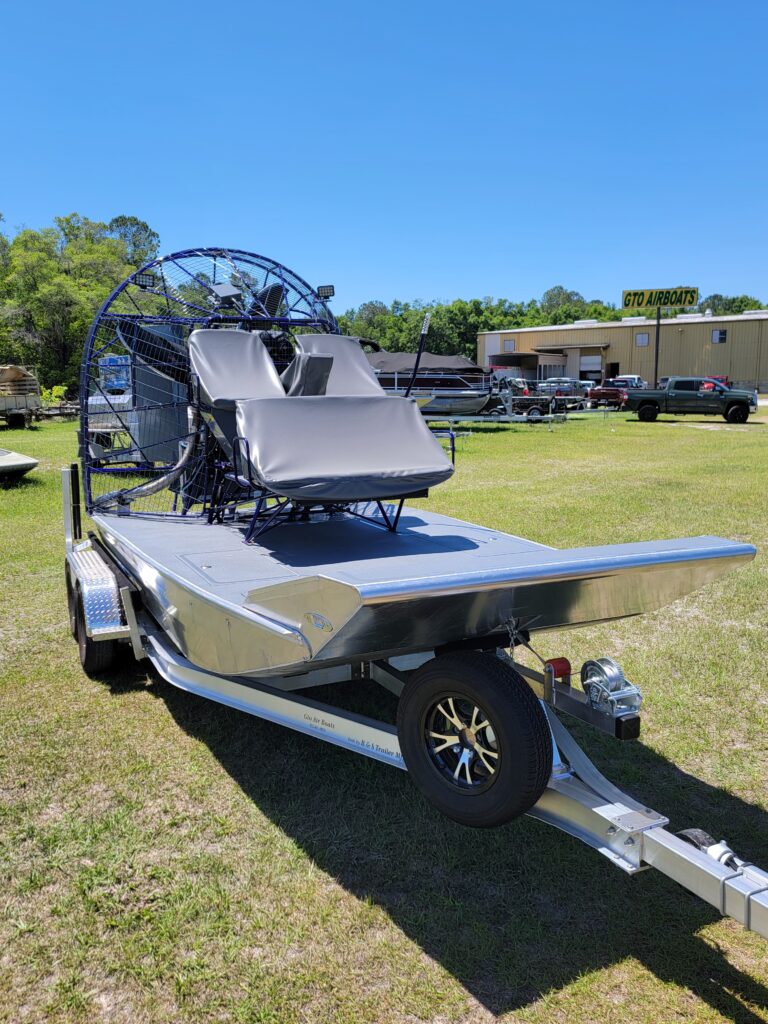

TRAILER
-Saltwater Series
-Aluminum I-Beam Construction
-Tandem Axle (3500 lbs.)
-14“Radial Tires
-2” Heavy Duty Coupler
-All Stainless-Steel Hardware
-Triple Rear Rollers
-Heavy Duty 1600 lb. F2 Tongue Jack with Wheel
-Heavy Duty Wench
-Easy Grease Bearings
-D.O.T. LED Lights
-Stainless Steel Rear Tie Downs
-Spare Tire & Mount
MANUALS
-Owner/Operational/Maintenance Manuals
TRAINING
-Training for Operation, Maintenance and Safety
LIMITED-WARRANTY
-Hull: Manufacture provides a Recreational Life Time Warranty, 5 Year Commercial; against defects in Workmanship and Materials to the Original Owner. Polymer, Non-Skid and Painted Surfaces are not included in this Warranty *
-Rigging: Manufacture provides a 2-year Warranty against defects in Workmanship and Materials *
-Engine: Manufacture Warrants its new products to be free from defects in material and workmanship under normal use and service conditions for 3 Year/300 Hour warranty *
-Reduction Unit: Manufacture Warrants its Product to be free from defects in Materials and Workmanship under normal use and service by Original Owner for a Period of 3 Years or 200 operating hours from date of Purchase *
-Propeller: Manufacture Warrants its products against defects in Material, Workmanship, and Manufacturing for 3 Year/300 Hours *
-All other Equipment & Accessories Minimum of 1 Year Coverage by repair or replacement *
*See a GTO Airboat Representative for Details and limitations of Warranties
CONTACT FOR PRICING AND ADDITIONAL INFORMATION
