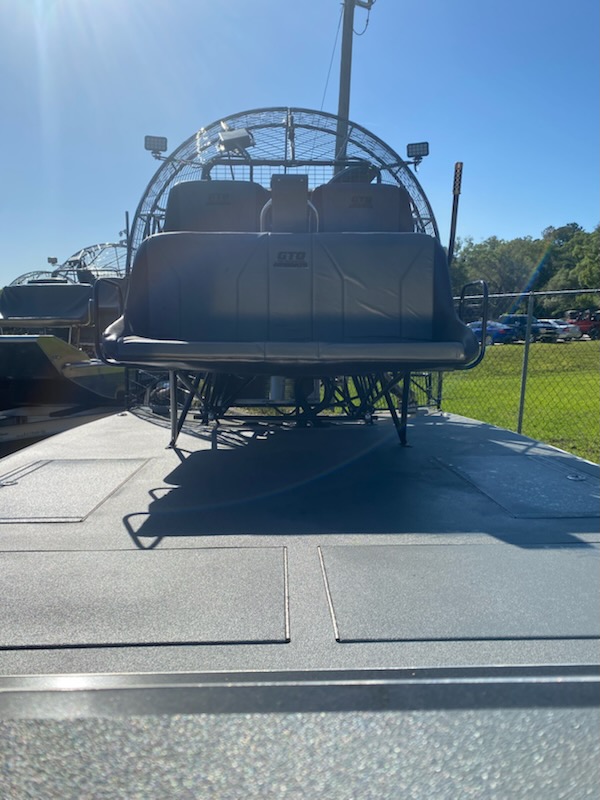

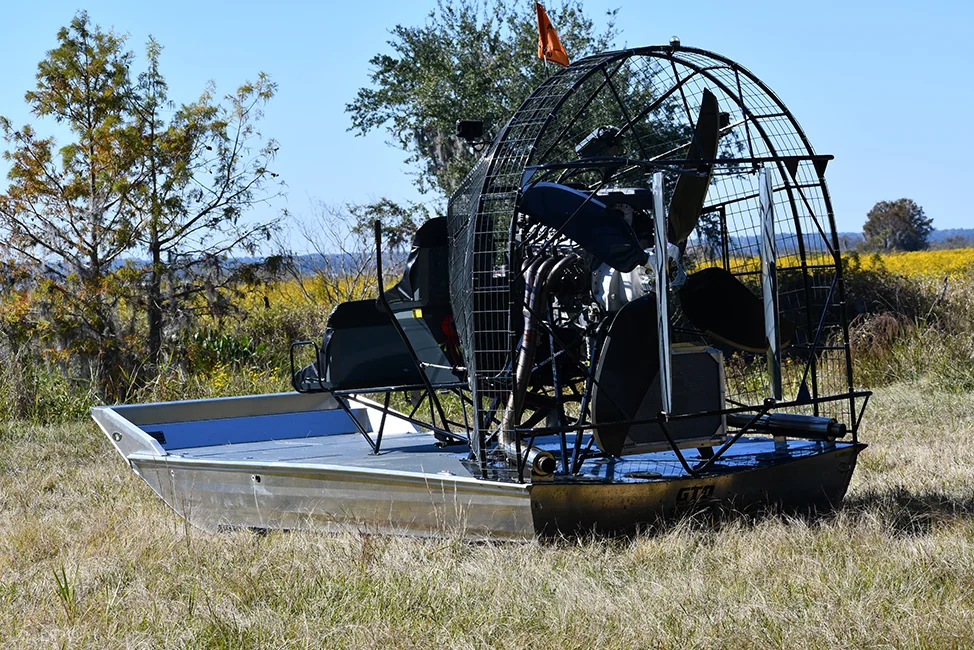

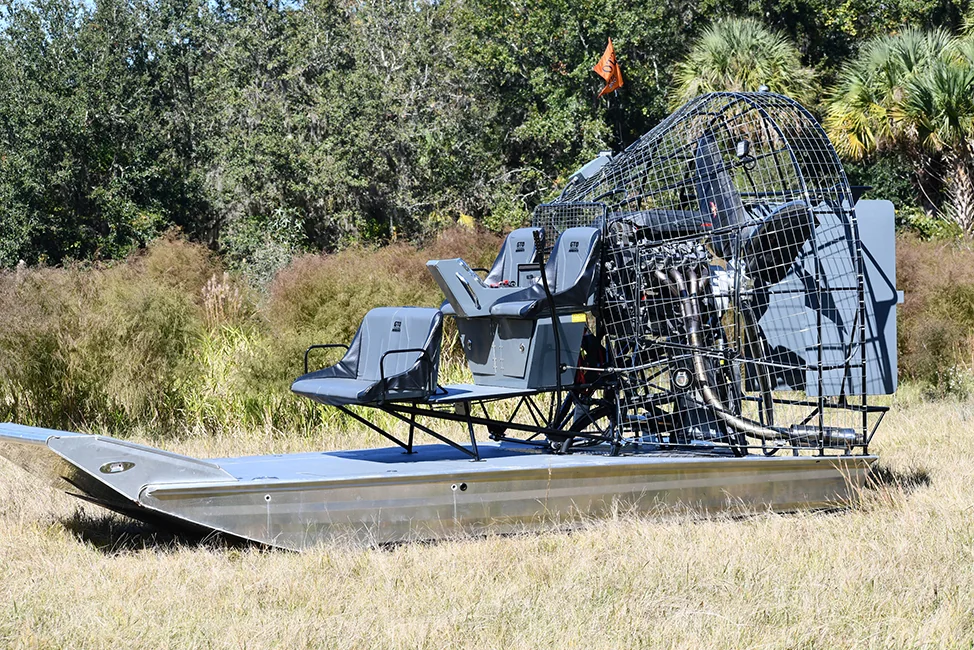

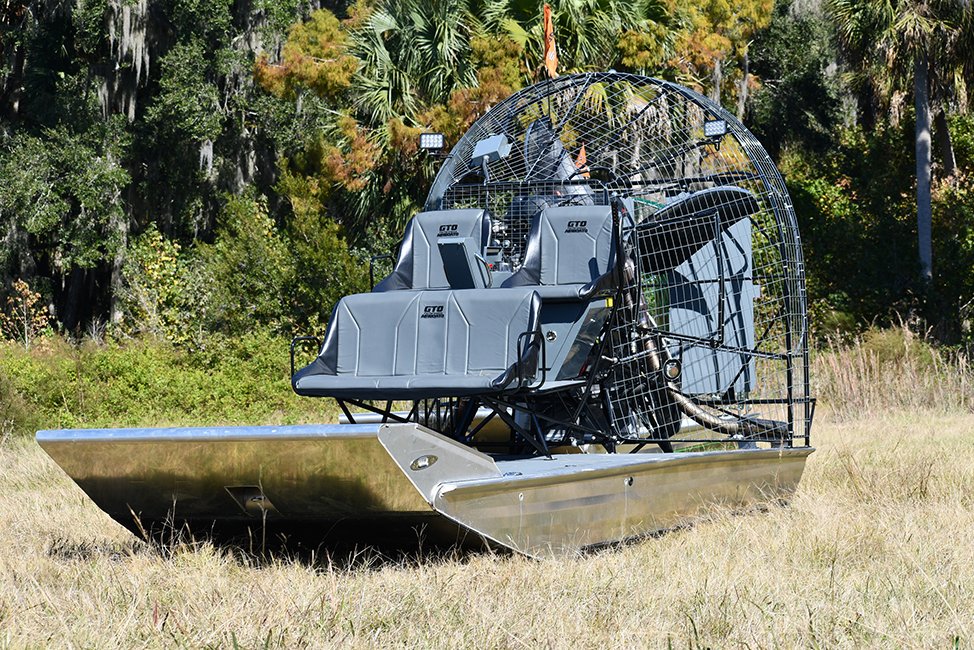

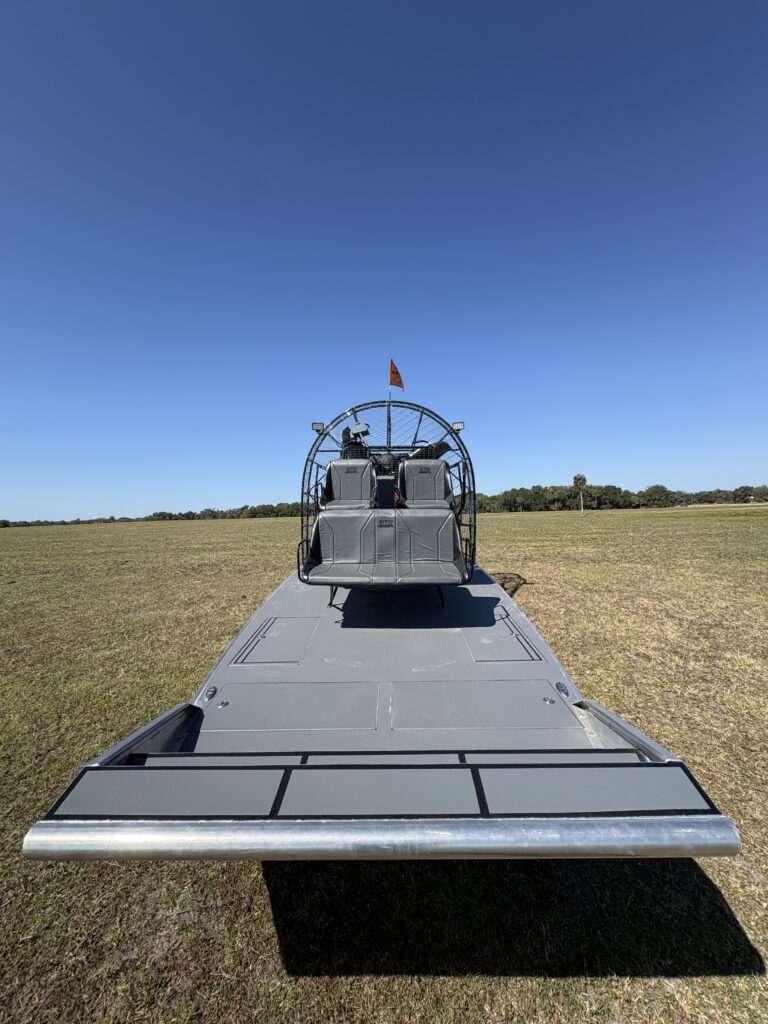

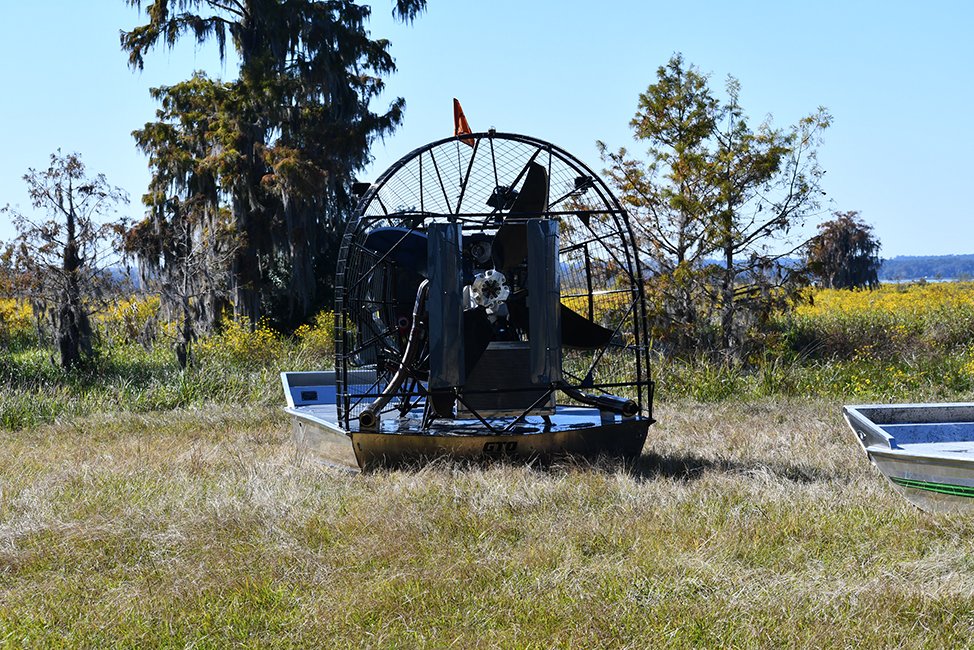

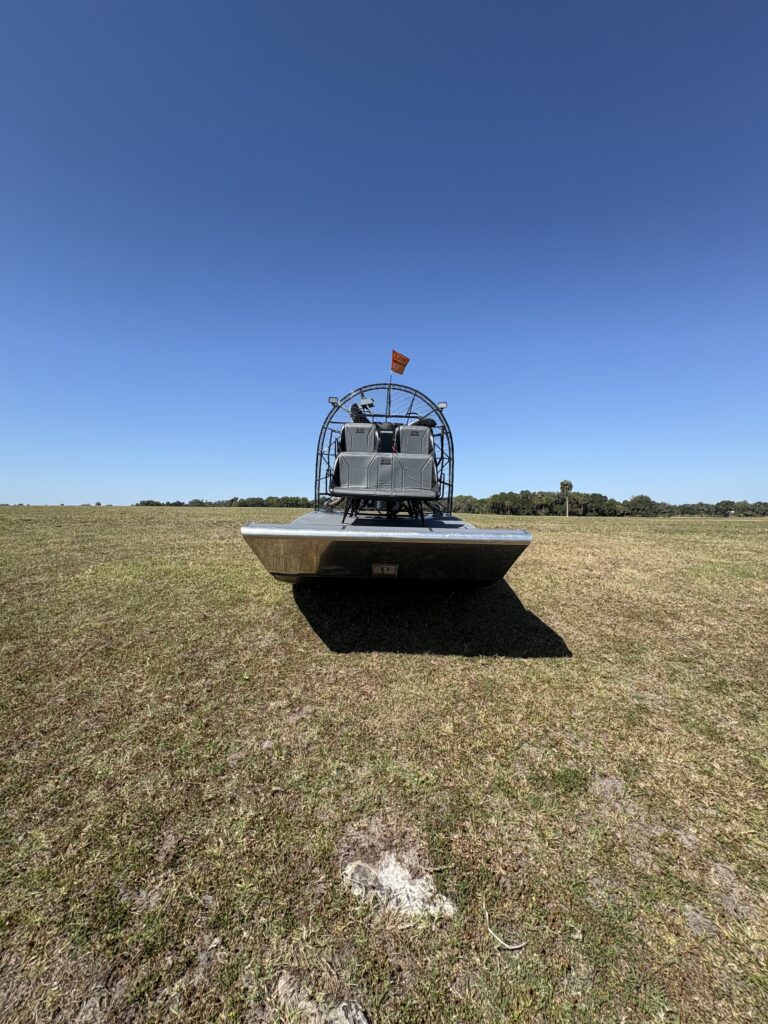

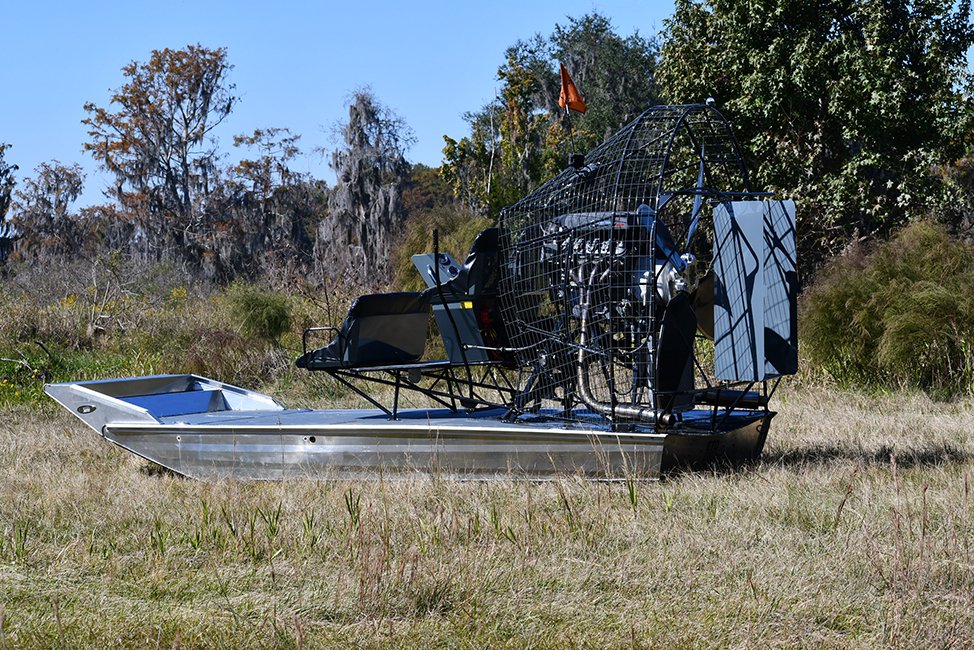

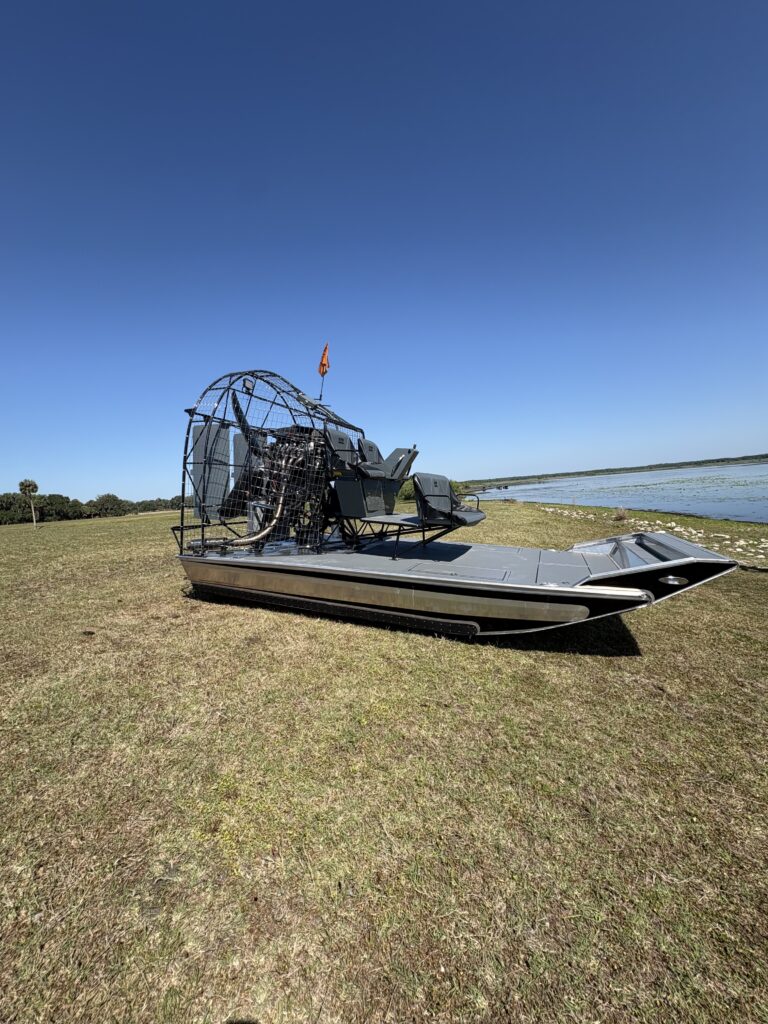

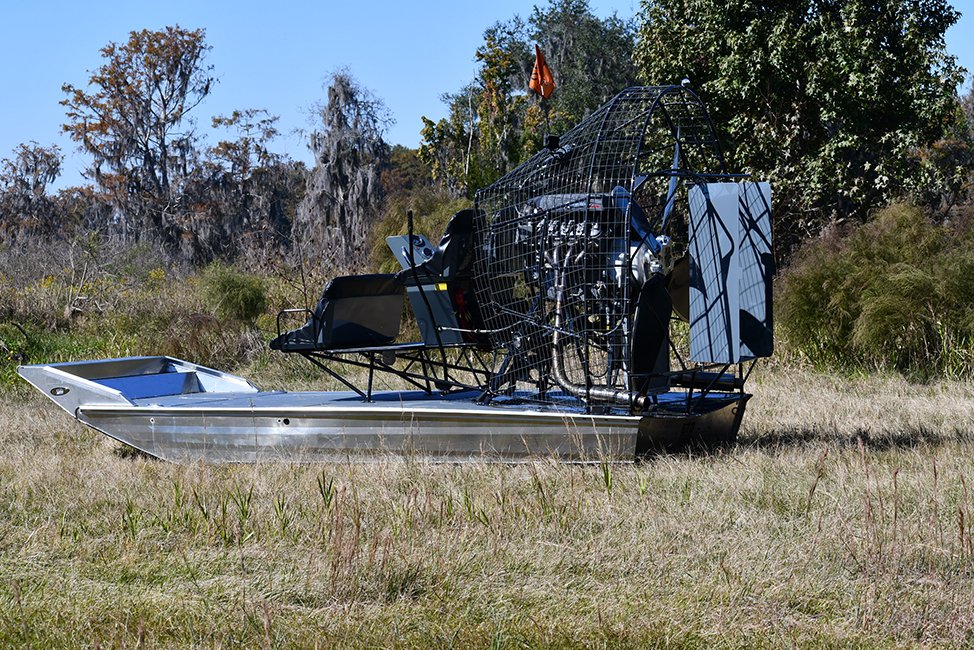

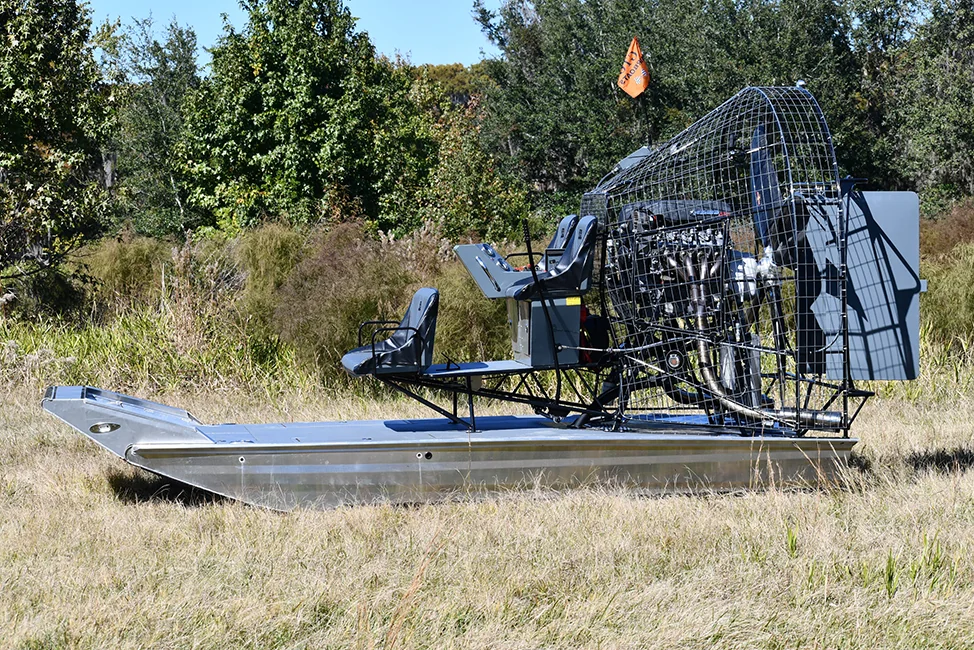

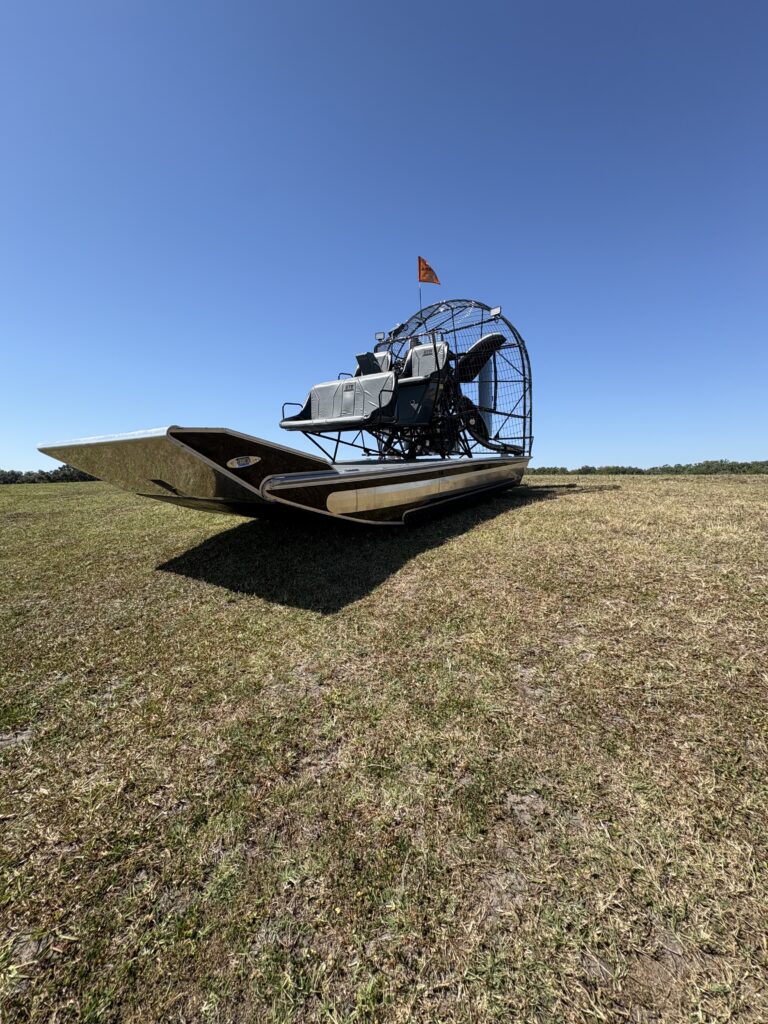

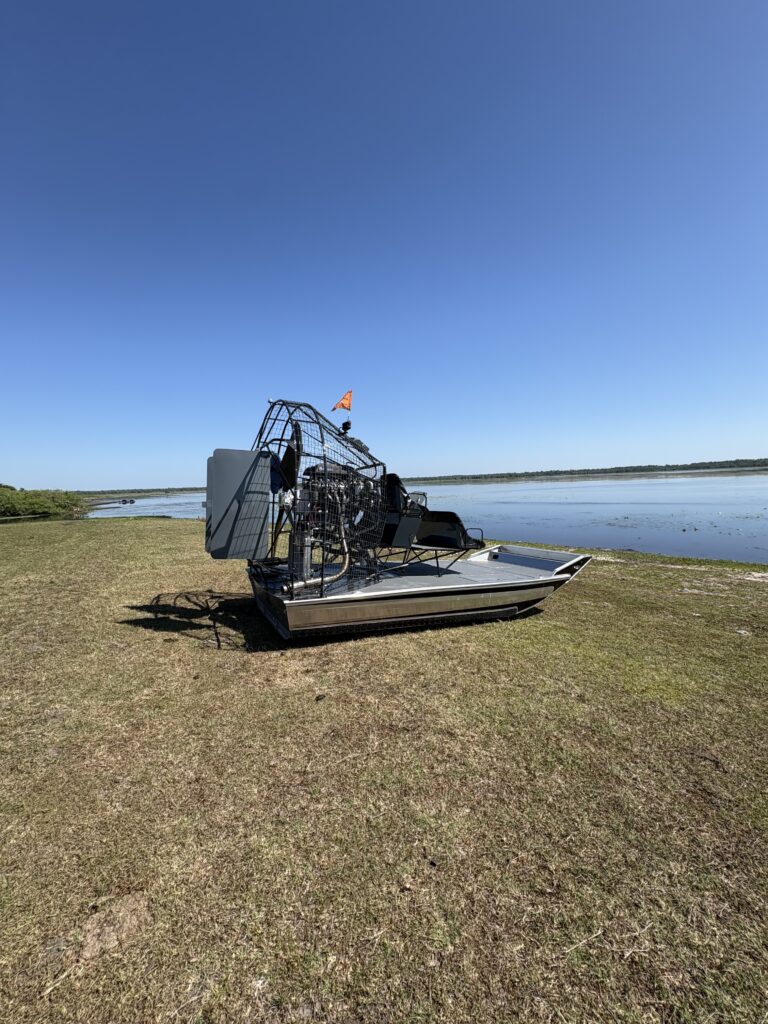

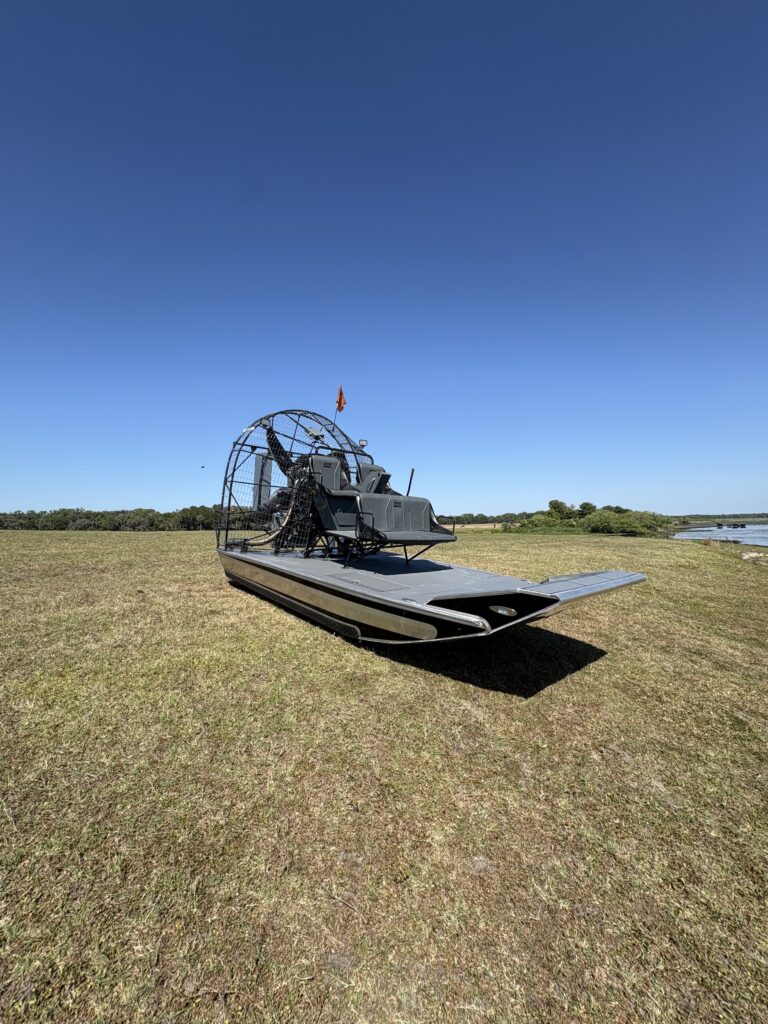

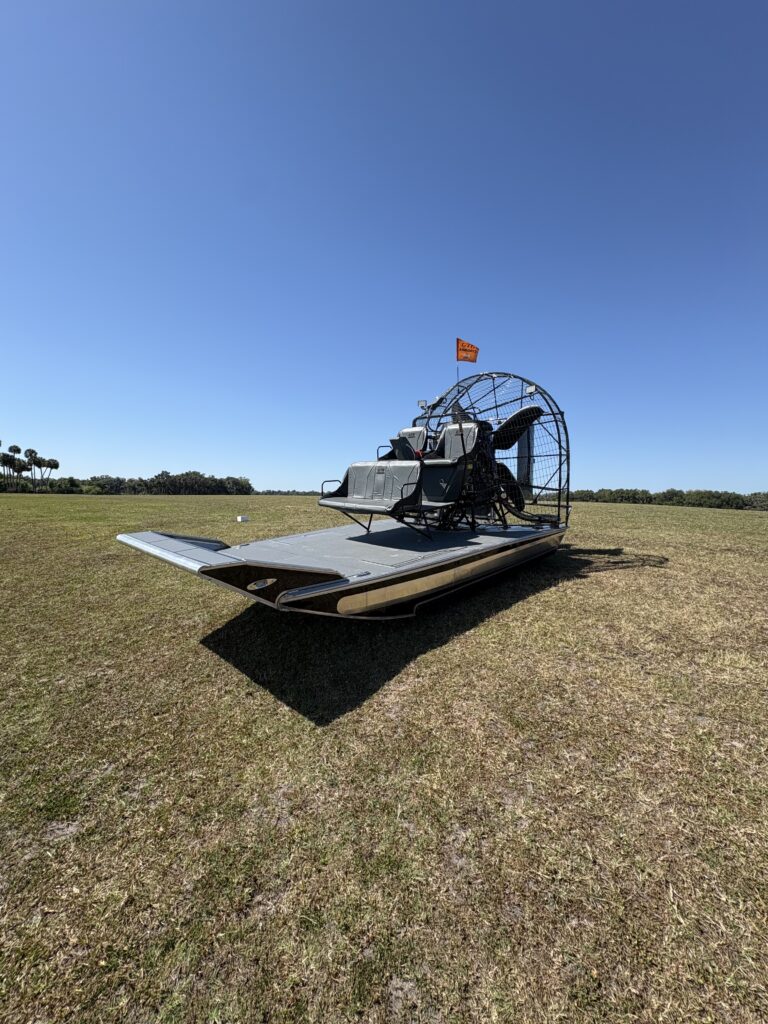

The SPV “Patrol Master”, GTO’s sleek-lined, low profile, full-decked Airboat is a solid foundation for Recreational Fun, Search and Rescue, and Patrol Work.
Specifications:
HULL
- Complete Deck Over
- One Piece Bottom Construction
- Non-Trip of Latest Design
- Length 15’
- Beam 8’
- Height of Midship 24 Inches
- Transom Min. 19 Inches
- Transom Relieved 15 Degrees for Rear Wash Safety
- All Welded Aluminum Construction Bottom and Transom Marine Alloy 5086 .190
- Bulkhead & Sides Marine Aluminum Alloy 5052 .125
- Bottom Stiffeners equally spaced across bottom
- 7 – 2” X 2” X ¼” T-Bar Stringers
- 2 – Cross Braces
- Twin Door Storage under Bow with Flush Mount Lockable Access with Drip Rail
- 2 – Access Doors, Port and Starboard
- 3 – Heavy Duty Stainless Bow & Transom Tiedown Eyes
- 4 – Stainless Steel Flush Mount Retractable Cleats
- USGG Basic Flotation
POLYMER
- 3/8” Polymer Bottom
- 1/4” Polymer on Hull Sides
- Attached with Stainless Steel Fasteners
GRASS RAKE
- 24” Solid Aluminum
- Step
- Flat Top
ENGINE
- Pleasure Craft Marine Levitator
- MS 70 7.4 Liter LSX
- 525 HP, 550 Torque
- Weight 565lbs
- Patented Premium Fuel Control Cell
- 12-Volt 250 Amp Alternator
- Serpentine Belt Pulley System
- Electric Fuel Pump with Fuel Filter/Water Separator
- U.S.C.G. Approved Fuel Lines
- Electric Gear Reduction Starter
- Precision Machined Flywheel
- Energy Suspension Interlocking Motor Mounts
REDUCTION
- Century Drive
- Excalibur
- 2:38 to 1 Ratio
- Soft Drive

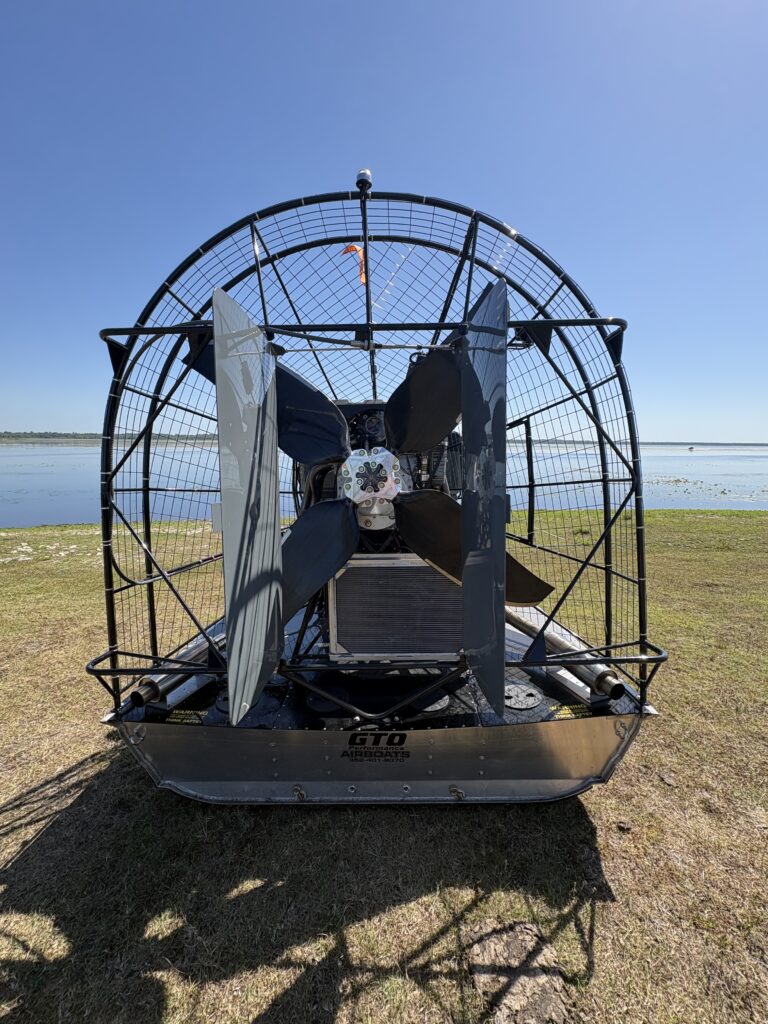

PROPELLER
- Sensenich 4 – Blade 82” JR Composite Propeller
- Adjustable Pitch
- Matched to the Horsepower of Engine

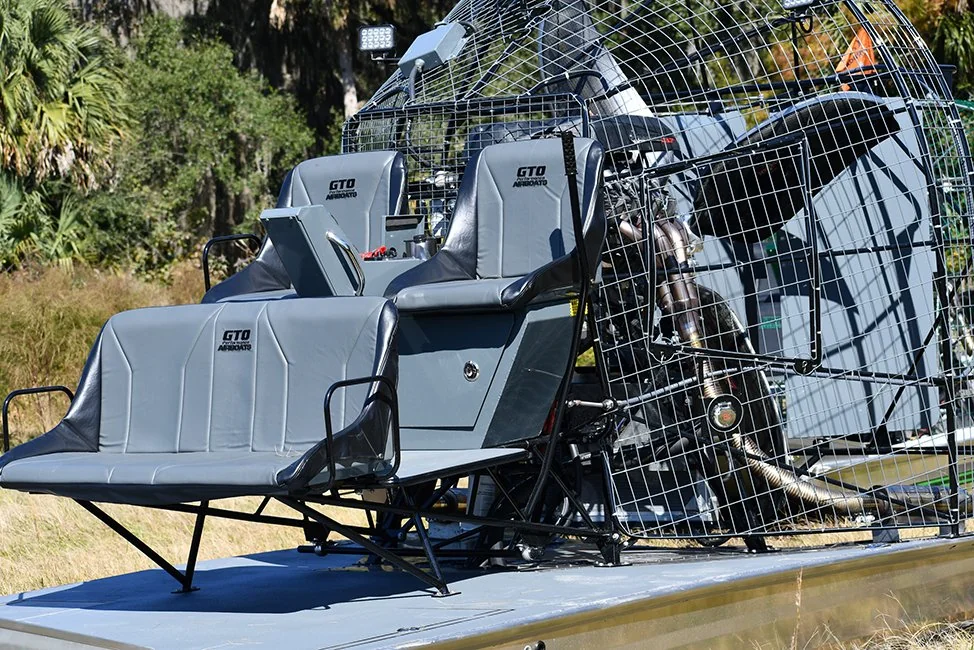

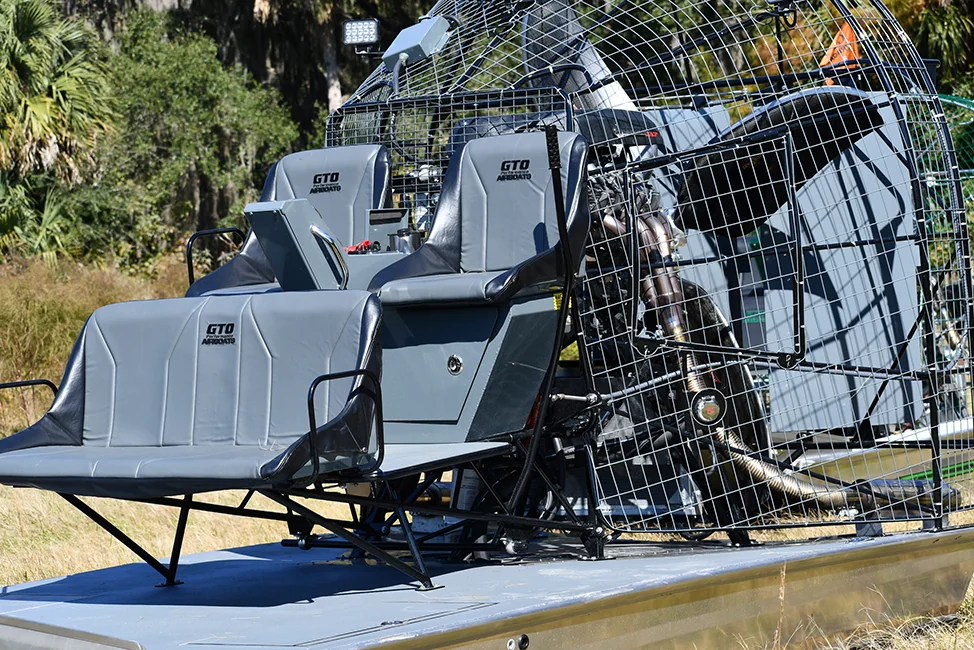

SEATING

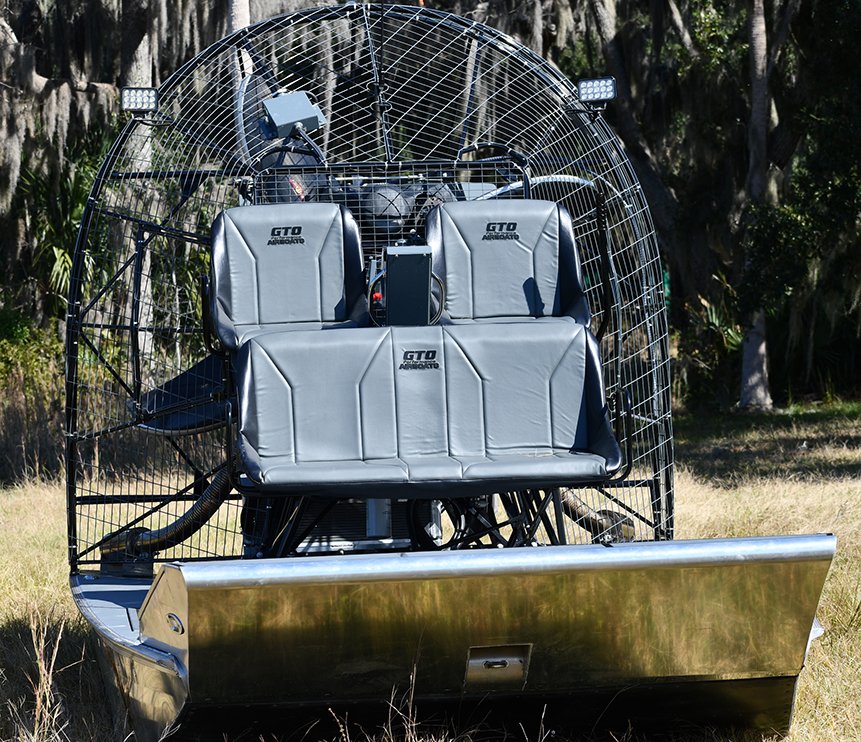

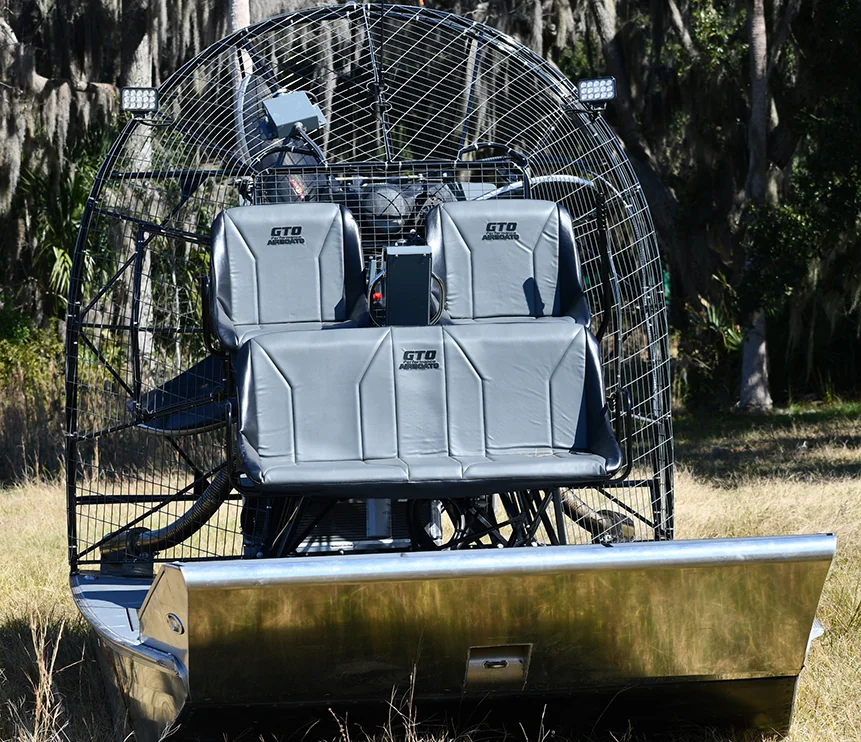

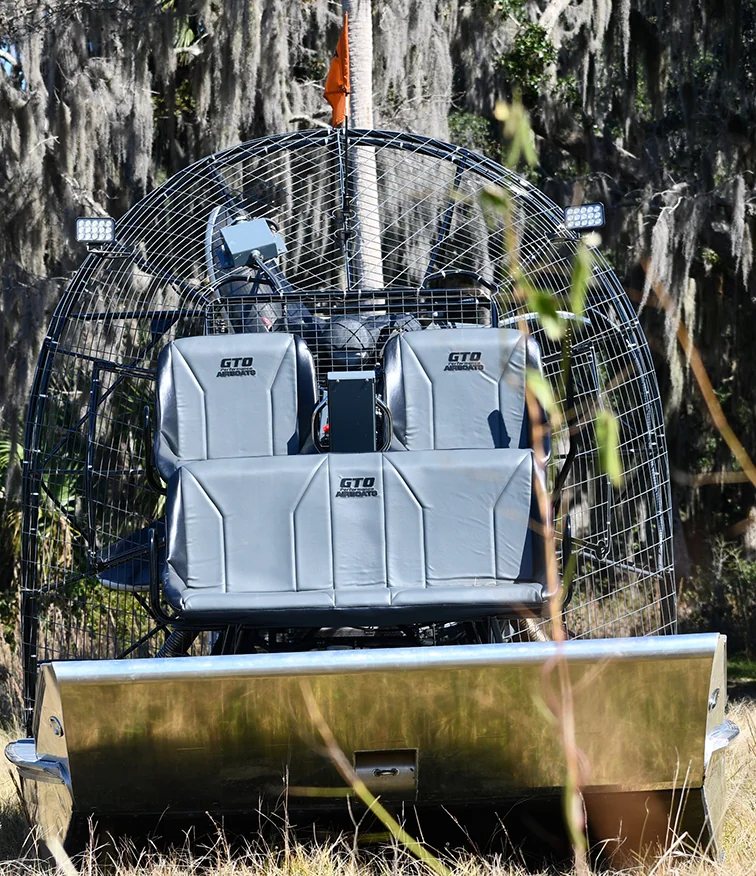

- Hydrofoil Aluminum Seating for 5, Double Rear Operator, Triple Front Passenger
- Wide Double Seat Box under Rear Operator Seat
- Custom Marine Vinyl Seat Cushions and Rain Covers
RIGGING
- .065 wall 304 Stainless Steel Tubing Super Structure with 1 ¼” Engine Stand Supports
- .065 wall 1” 304 Stainless Steel Tubing Seat Package
- Round .065 wall 5/8” & 1” 304 Stainless Steel Tubing Cage
- Propeller Guard to provide 3” Min. Clearance for Propeller
- .135” X 2” X 4” Stainless Steel Cage Wire (Banded)
- Access Doors on Side of Cage
- Two Mounts for Flag Mount/Antennas
EQUIPMENT
- Stainless Steel Headers
- Stainless Steel Flex Pipe & Band Clamps
- Stainless Steel Mufflers
- Heavy Duty Engine Cooling Aluminum Radiator
- Aluminum Coolant Expansion Tanks
- U.S.C.G. Approved Radiator Hoses
- Heavy Duty Oil Cooler
- High Pressure Braided Oil Cooler Lines
- Complete Automatic Bilge System
- Dual Batteries with Boxes (650 Cranking Amps)
- Ignition Protected Battery Selector Switch
- Certified Low Profile 47 Gallon Aluminum Fuel Tank with Remote Fill
- Cable Steering attached to top of Rudders

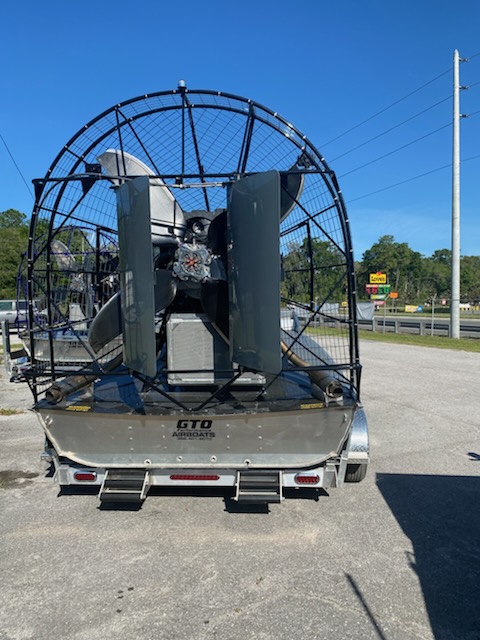

- 4 Foot Air Foiled Aluminum Rudders, Foam Filled, Nylon Bushings
- Stainless Steel Rudder Rods
- Rudders attached with Stainless-Steel Heim Joints
- All Stainless-Steel Fasteners

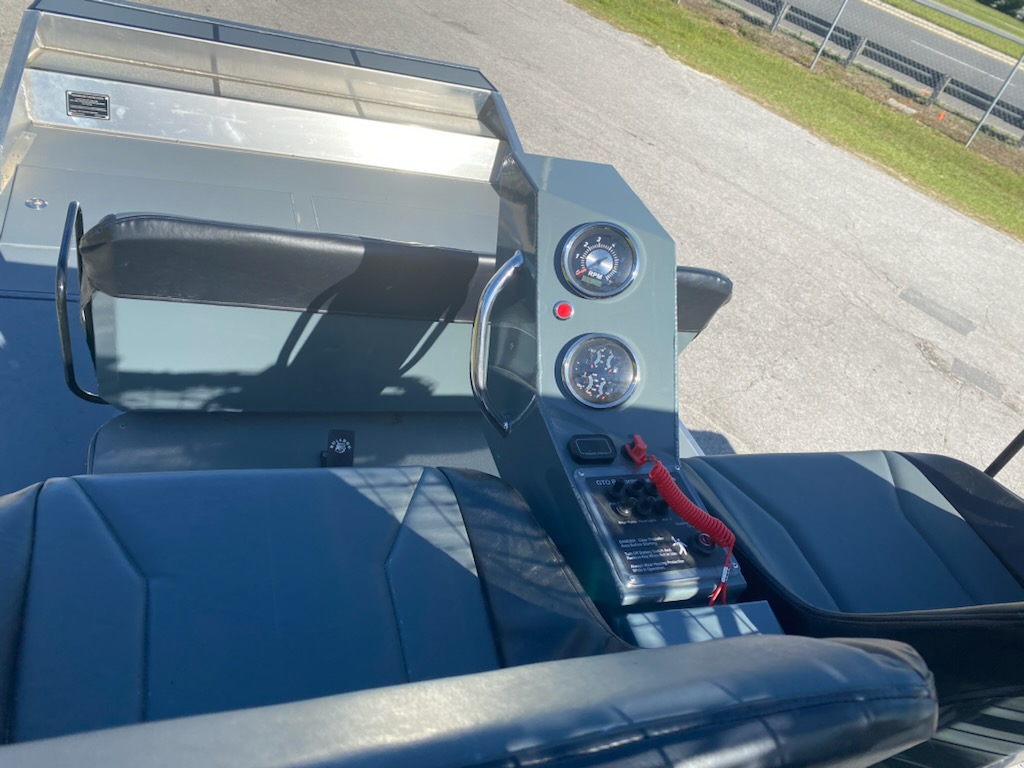

INSTRUMENTATION & ILLUMINATION
- Bootleg Aluminum Instrument Panel
- Marine Standard Wiring
- Lighted Marine Gauges
- Labeled Marine Toggle Switches
- Voltmeter
- Temperature Gauge
- Oil Pressure Gauge
- Fuel Gauge
- Tachometer
- Hour Meter
- Engine Warning System
- Marine Keyed Ignition
- 1 – 12 Volt Marine Power Point
- 1 – USB Port
- 2 – Handles
- Fuse Panel with Circuit Breakers
- U.S.C.G. Approved Navigational Lights
- Flood Lights Mounted Port and Starboard Inside of Cage
- L.E.D. Courtesy Light Package, includes Floorboard & Decking, Set Box
- Marine Wet Sound System
PAINT/ MARINE POWDER COAT/ WEBBING/ NON-SKID
- Hull Deck Non-Skid
- Rudders Painted
- Seat Shells Powder Coated
- Instrument Panel Powder Coated
- Seat Box Powder Coated
- Powder Coated Rigging with Powder Coated Banded Wire (Purple)

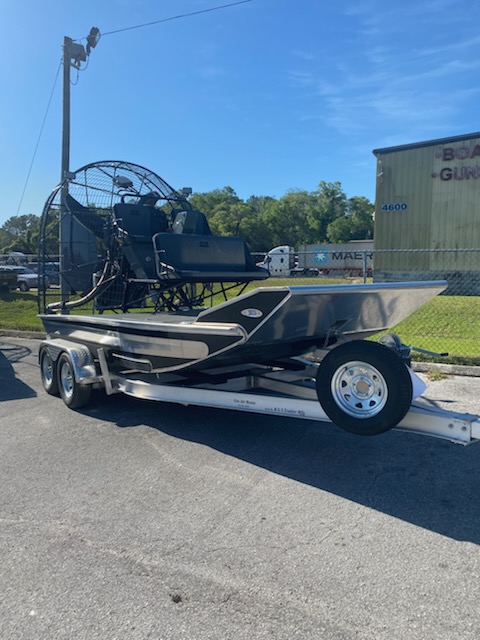

TRAILER
- Saltwater Series
- Aluminum I-Beam Construction
- Tandem Axle (3500 lbs.)
- 14“Radial Tires
- 2” Heavy Duty Coupler
- All Stainless-Steel Hardware
- Triple Rear Rollers
- Heavy Duty 1600 lb. F2 Tongue Jack with Wheel
- Heavy Duty Wench
- Easy Grease Bearings
- D.O.T. LED Lights
- Stainless Steel Rear Tie Downs
- Spare Tire & Mount
MANUALS
- Owner/Operational/Maintenance Manuals
TRAINING
- Training for Operation, Maintenance and Safety
LIMITED-WARRANTY
- Hull: Manufacturer provides a Recreational Lifetime Warranty, 5 Year Commercial; against defects in Workmanship and Materials to the Original Owner. Polymer, Non-Skid and Painted Surfaces are not included in this Warranty *
- Rigging: Manufacture provides a 2-year Warranty against defects in Workmanship and Materials *
- Engine: Manufacture Warrants its new products to be free from defects in material and workmanship under normal use and service conditions for 3 Year/300 Hour warranty *
- Reduction Unit: Manufacture Warrants its Product to be free from defects in Materials and Workmanship under normal use and service by Original Owner for a Period of 3 Years or 200 operating hours from date of Purchase *
- Propeller: Manufacture Warrants its products against defects in Material, Workmanship, and Manufacturing for 3 Year/300 Hours *
- All other Equipment & Accessories Minimum of 1 Year Coverage by repair or replacement *
- *See a GTO Airboat Representative for Details and limitations of Warranties
CONTACT FOR PRICING AND ADDITIONAL INFORMATION
