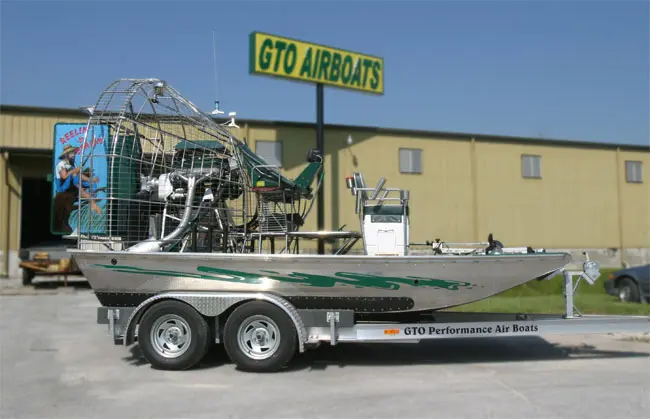

SPV Saltwater Guide Series
HULL
- One Piece Bottom Construction
- Slope Back Transom
- Non-Trip of Latest Design
- Length 15′
- Beam 8′
- Height of midship 15″
- Transom Min. 20″
- Transom relieved 15 Degrees for Rear Wash Safety
- All Welded Aluminum Construction Bottom and Transom Marine Alloy 5086 .190
- Bulkhead and Sides Marine Alloy 5052 .125 Aluminum
- Bottom Stiffeners Equally Spaced Across Bottom
- Min. 7- 2” X 2” X ¼” T-Bar Stringers
- Deck Area 36” Width
- Storage Under Bow with flush mount Lockable Access with drip rail
- Recessed 3/4 Walkaround
- Storage Box on one side of Walkarond
- Aerated Live Well with Bait Separator
- Non-skid Top of Deck (your choice of color)
- Custom hull strip
POLYMER
- 3/8” Polymer Bottom
- 1/4″ Polymer on Hull Sides
- Attached with Stainless Steel Fasteners
SEATING
- Seating for four, Two Single Rear Operator , Cooler/Double Seat with Drink Holders
- Your Choice of Color Custom Marine Vinyl Seat Cushions and Rain Covers
RIGGING
- Stainless Steel Super Structure with 1 ¼” Engine Stand Supports
- Stainless Steel Seat Package and Cage
EQUIPMENT
- Cable Steering Attached to Top of Rudders
- Stainless Steel Flex Pipe 3”
- Stainless Steel Headers
- Stainless Steel Mufflers
- Heavy Duty Engine Cooling Aluminum Radiator
- Aluminum Coolant Expansion Tank
- U.S.C.G. Approved Radiator Hoses
- Complete Bilge System
- Dual Batteries with Battery Boxes
- Ignition Protected Battery Selector Switch
- Certified 40 Gallon Aluminum Fuel Tank with Remote Fill
- 4 Foot Air Foiled Aluminum Rudders, Foam Filled, Nylon Bushings
- Stainless Steel Rudder Rods
- Rudders Attached with Rod Ends
- Assembled with Stainless Steel Fasteners
- KC Lights Attached to Cage
- Rod Holders on Cage
- Floor Board Courtesy Light
ENGINE
- New 383 C.I.D. / 450 H.P. GTO/MAS Performance Engine
- New QuickFuel 750 CFM Carburetor
- 12 Volt 65 Amp Alternator with Dual Belt/ Pulley System
- Electric Fuel Pump with Fuel Filter/Water Separator
- U.S.C.G. Approved Fuel Lines
- Electric Gear Reduction Starter
- Certified Marine Spark Arrestor/ with Rain Cover
- HEI Distributor
- Heavy Duty Flywheel
REDUCTION
- Stinger Gear Reduction
- 2.09 to 1 Ratio
PROPELLER
- Adjustable pitch Composite Propeller Matched to Horse Power of Engine
INSTRUMENTATION
- Boot Leg Instrument Panel
- Marine Standard Wiring
- Lighted Marine Gauges
- Labeled Marine Toggle Switches
- Voltmeter
- Temperature Gauge
- Oil Pressure Gauge
- Tachometer
- Hour Meter
- Fuel Gauge
- Marine Keyed Ignition Switch
- 1- 12 Volt Marine Power Point
- Fuse Panel with Circuit Breakers
- U.S.C.G. Approved Navigational Lights
TRAILER
- Aluminum
- Single Axle (3500 lbs.)
- 2” Heavy Duty Coupler
- Heavy Duty Tongue Jack with Wheel
- Heavy Duty Wench
- Easy Grease Bearings
- Carpet Side Boards/EZ Load Rollers on Rear
- D.O.T. Lights
