HULL
>All Welded Aluminum Construction
>Non-Trip Chine of Latest Design
>Length 14 Feet
>Beam 8 Feet
>Side Height of 24 Inches
>Transom Min.23 Inches
>Transom Relieved 15 Degrees for Rear Wash Safety
>Bottom One Piece .190 5086 Marine Grade Aluminum
>Transom .190 5086 Marine Grade Aluminum, Relieved 15 Degrees for Rear Wash Safety
>Bulkhead & Bow Cap & Sides .125 5052 Marine Grade Aluminum
>7 – 2” X 2” X .250 Aluminum T-Bar Stringers
>I-Beam Cross Brace
>2 – .190 5086 Aluminum Gussets mounted T-Bar to Transom
>2 – .125 5052 Aluminum Gussets mounted Transom to Splash Plate
>Front Deck Area 36” Width with Lockable Storage
>Top of Deck non-skidded for Safety-Choice of Standard Colors
>2 – 1” Drain Plugs
>3 – Heavy Duty Stainless Bow Eye
>Side Walk Boards
>USCG Basic Flotation
POLYMER
>3/8” UHMW Polymer Hull Bottom
>Attached with Stainless Steel Flush Mount Bolts
GRASS RAKE
>24” Solid Aluminum
>Step
ENGINE
>Pleasure Craft Marine Levitator
>MS 70 – 7.4 Liter LSX
>525 HP, 550 Torque
>Patented Premium Fuel Control Cell
>12-Volt 250 Amp Alternator
>Serpentine Belt Pulley System
>Electric Fuel Pump with Fuel Filter/Water Separator
>U.S.C.G. Approved Fuel Lines
>Electric Gear Reduction Starter
>Precision Machined Flywheel
>Energy Suspension Interlocking Motor Mounts
>Engine Cowling Cover
>Weight 565lbs
REDUCTION
>Stinger Gear Drive
>2:38 to 1 Ratio
>Soft Drive
PROPELLER
>Sensenich Composite Propeller
>Adjustable Pitch
>3 – Blade 82” JR Series to Match Engine Horse Power

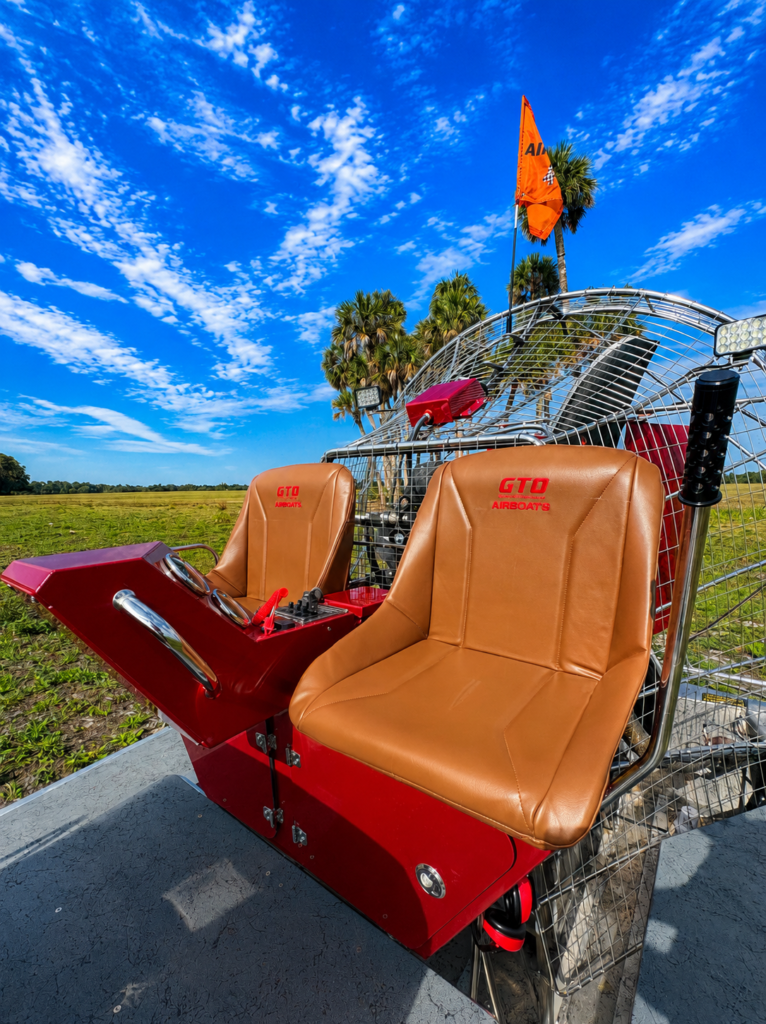

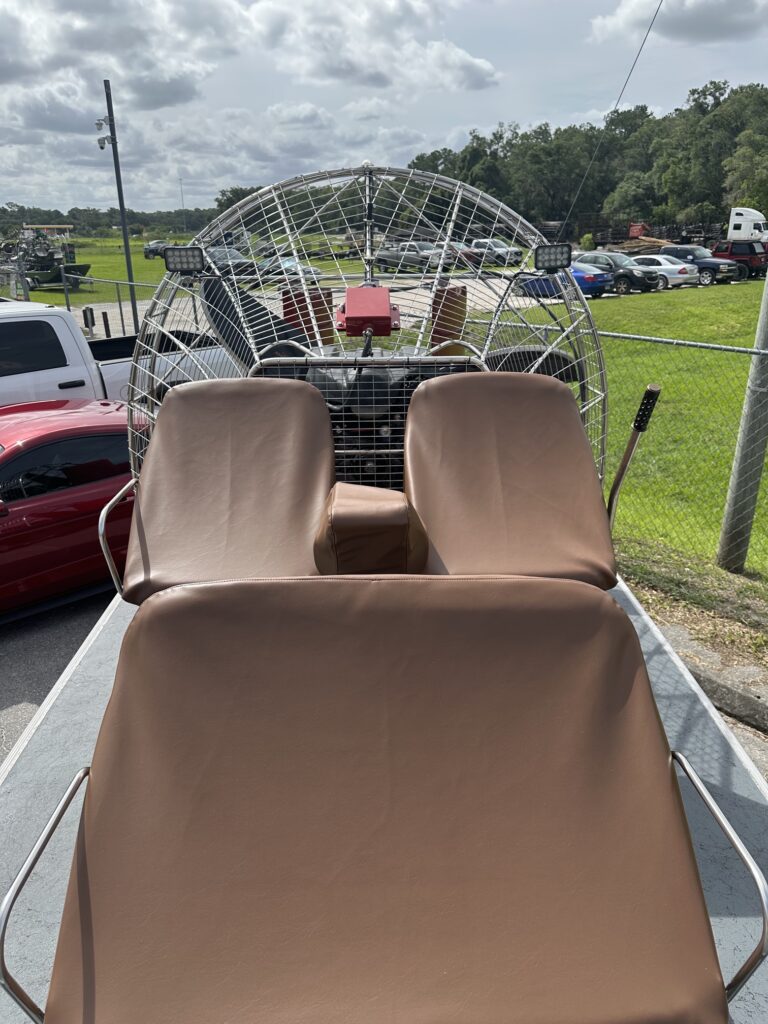

SEATING
>Hydrofoil Aluminum Seating for 4, 2-Single Fatman Rear Operator, Double Front
>Dry Box under Front & Wire Basket under Front Seats
>Custom Marine Vinyl Seat Cushions & Rain Covers
RIGGING
>Engine Stand .065 wall 1” & 1 ¼” 304 Stainless Steel Square Tubing
>Seat Package .065 wall 1” & 5/8” 304 Stainless Steel Round Tubing
>Cage Propeller Guard.065 wall 5/8” & 1” 304 Stainless Steel Round Tubing
>Cage Propeller Guard to provide 3” Min. Clearance for Propeller
>.135” X 2” X 4” Stainless Steel Cage Wire
EQUIPMENT
>Stainless Steel Flex Pipe 3”
>Stainless Steel Headers
>Stainless Steel Mufflers
>AFCO Heavy Duty Engine Cooling Aluminum Radiator with Oil Cooler
>Aluminum Coolant Expansion Tank
>U.S.C.G. Approved Radiator/Coolant Hoses
>Complete Automatic Bilge System
>Dual Batteries with Battery Boxes (650 Cranking Amps)
>Ignition Protected 4 Position Battery Selector Switch
>Certified 40 Gallon Aluminum Fuel Tank with Remote Fill
>Cable Steering attached to top of Rudders
>2’ X 4’ Foot Air Foil Aluminum Rudders, Foam Filled, Nylon Bushings
>Stainless Steel Rudder Rods
>Rudders attached with Stainless Steel Heim Joints
>All Stainless Steel Fasteners
>L.E.D. Lights Attached to Cage
>Floor Board Courtesy Light
>U.S.C.G. Approved Navigational Lights

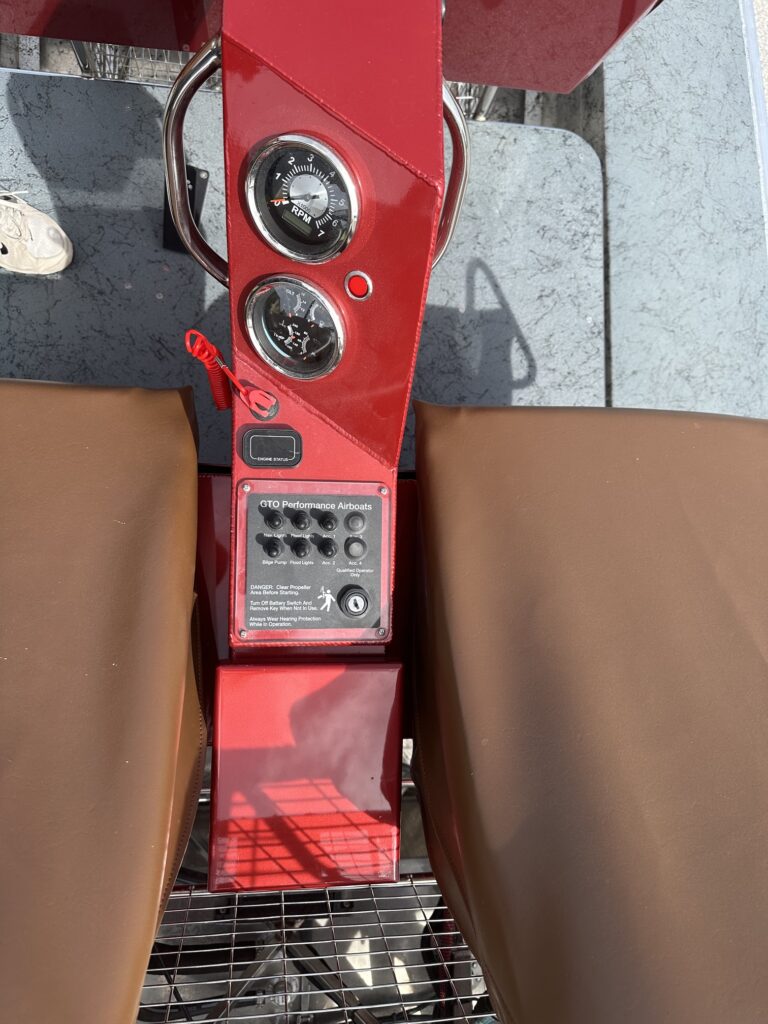

INSTRUMENTATION
>Aluminum Bootleg Style Panel
>Marine Vinyl Cover
>Marine Standard Wiring
>Lighted Marine Gauges
>Voltmeter
>Temperature Gauge
>Oil Pressure Gauge
>Tachometer
>Hour Meter
>Fuel Gauge
>8-Labeled & Lighted Marine Toggle Switches with Rubber Boots
>Keyed Ignition
>Kill switch with Lanyard
>Engine Warning System
>1 – 12 Volt Marine Power Point
>1 – USB Power Point
>Fuse Panel with Circuit Breakers
>Glove Box
PAINT/POWDERCOAT/WEBBING/NON-SKID
>Hull Red Stripe & Webbing
>Rudders Painted
>Seat Shells Painted
>Instrument Panel& Seat Box Powder Coated
>All Walk Areas Non-Skid
>*Rigging (Polished Stainless Steel)
CONTACT FOR PRICING AND ADDITIONAL INFORMATION
