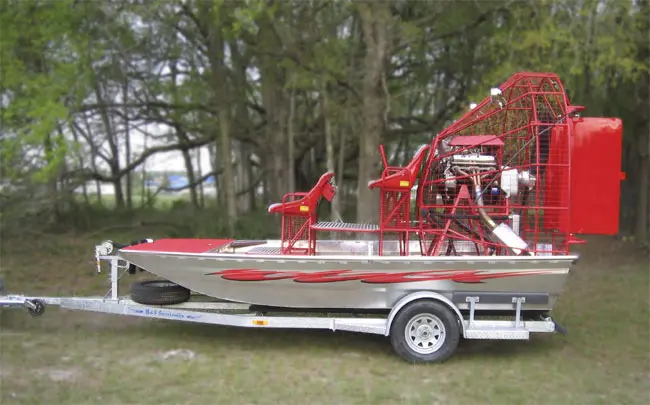

SPV Standard Series
Get your standard equipment Airboat turn key, with all the equipment you need for Airboating at a great price.
Hull
- One-Piece Bottom Construction
- Non-Trip of Latest Design
- Lengths Available 14′ and 15′
- Beam 71/2′
- Height of Midship 25 Inches
- Transom Min. 20 Inches
- Transom Relieved 15 Degrees for Rear Wash Safety
- All Welded Aluminum Construction Bottom and Transom Marine Alloy 5086 .190
- Bulkhead and Sides Marine Alloy 5052 .125 Aluminum
- Bottom Stiffeners Equally Spaced Across Bottom
- Min. 5 – 2” X 2” X 1/4” T-Bar Stringers
- Recessed Deck Area 36” Width
- Storage Under Bow with Flush Mount Lockable Access with Drip Rail
- Top of Deck will be Non-Skid (Your Choice of Color)
- Custom Hull Stripe
- 1/4” Polymer Bottom
- Attached with Stainless Steel Fasteners
Propeller
- Adjustable Pitch Composite Propeller Matched to the Horse Power of Engine
Seating
- Seating for Three, Single Rear Operator , Double Seat Up Front
- Your Choice of Color Custom Marine Vinyl Seat Cushions and Rain Covers
Rigging
- Steel Super Structure with 11/4” Engine Stand Supports
- Steel Seat Package and Cage
- Powder Coated
Equipment
- Cable Steering Attached to Top of Rudders
- Stainless Steel Flex Pipe 3”
- Stainless Steel Headers
- Stainless Steel Mufflers
- Heavy-Duty Engine Cooling Aluminum Radiator
- Aluminum Coolant Expansion Tank
- U.S.C.G. Approved Radiator Hoses
- Complete Bilge System
- Dual Batteries with Battery Boxes
- Ignition-Protected Battery Selector Switch
- Certified 40-Gallon Aluminum Fuel Tank with Remote Fill
- 4-Foot Air Foiled Aluminum Rudders, Foam Filled, Nylon Bushings
- Stainless Steel Rudder Rods
- Rudders Attached with Rod Ends
- Assembled with Stainless Steel Fasteners
- KC Lights Attached to Cage
- Floor Board Courtesy Light
Engine
- New 350 C.I.D. / 350 Horse Power GTO/MAS Performance Engine
- New QuickFuel 600 CFM Carburetor
- 12 Volt 65 Amp Alternator with Dual Belt/ Pulley System
- Electric Fuel Pump with Fuel Filter/Water Separator
- U.S.C.G. Approved Fuel Lines
- Electric Gear Reduction Starter
- Certified Marine Spark Arrestor with Rain Cover
- HEI Distributor
- Heavy-Duty Flywheel
Reduction
- Stinger Gear Reduction
- 2.09 to 1 Ratio
Propeller
- Adjustable Pitch Composite Propeller Matched to the Horse Power of Engine
Instrumention
- Marine Standard Wiring
- Lighted Marine Gauges
- Labeled Marine Toggle Switches
- Voltmeter
- Temperature Gauge
- Oil Pressure Gauge
- Tachometer
- Hour Meter
- Fuel Gauge
- Marine Keyed Ignition Switch
- 1- 12 Volt Marine Power Point
- Fuse Panel with Circuit Breakers
- U.S.C.G. Approved Navigational Lights
- Engine Warning System
Trailer
- Aluminum
- Single Axle (3500 lbs.)
- 2” Heavy-Duty Coupler
- Heavy-Duty Tongue Jack with Wheel
- Heavy-Duty Wench
- Easy Grease Bearings
- Carpet Side Boards
- EZ Load Rollers on Rear
- D.O.T. Lights
