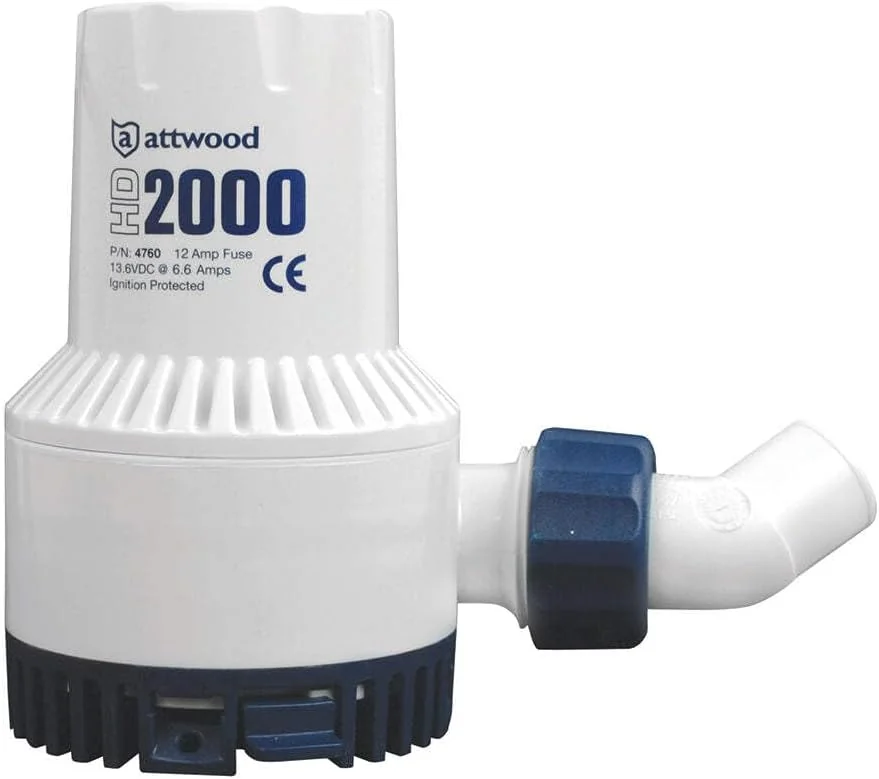

Attwood Heavy Duty Bilge Pumps offer unsurpassed durability and efficiency in a compact design.
Features:
- Integrate the highest quality bearings, brushes, alloys and magnets designed to withstand extreme usage cycles
- Pumps employ exclusive shaft and motor compartment, reducing wear and significantly extending pump life
- Advanced resins incorporated into exterior to resist chemicals such as engine oil, aggressive detergents and hose plasticizers
- Design ensures electrical energy is converted to pump rather than excess heat
- Tinned and caulked wire improves corrosion resistance and eliminates water damage
- Molded two-wire seal eliminates potential leak path
- Enhanced stainless steel motor shaft resists corrosion and reduces shaft seal degradation
- Mechanically energized shaft seal improves durability and extends motor life
- High-efficiency permanent magnet motor utilizes composite brushes and lubricated bearings to ensure long life under the most aggressive load conditions
- Anti-airlock nozzle exhausts air that causes air lock while preventing spray streams
- Rotating outlet for improved hose installation
- Locking tab and base swivel allow for (8) unique mounting positions
Specifications:
- Flow Rate: 2000 GPH
- Port Size: 1 1/8″
- Dimensions: 5.97″ H x 3.83″ O.D.
- Nominal Voltage: Specify 12 or 24V DC
- 12V DC Model:
- Max. Current Draw: 6.6A
- Fuse: 12A
- 24V DC Model:
- Max. Current Draw: 3.5A
- Fuse: 7A
